Agri-Farming WIRED DVR Camera System with 10" LCD Up to 4 Cameras

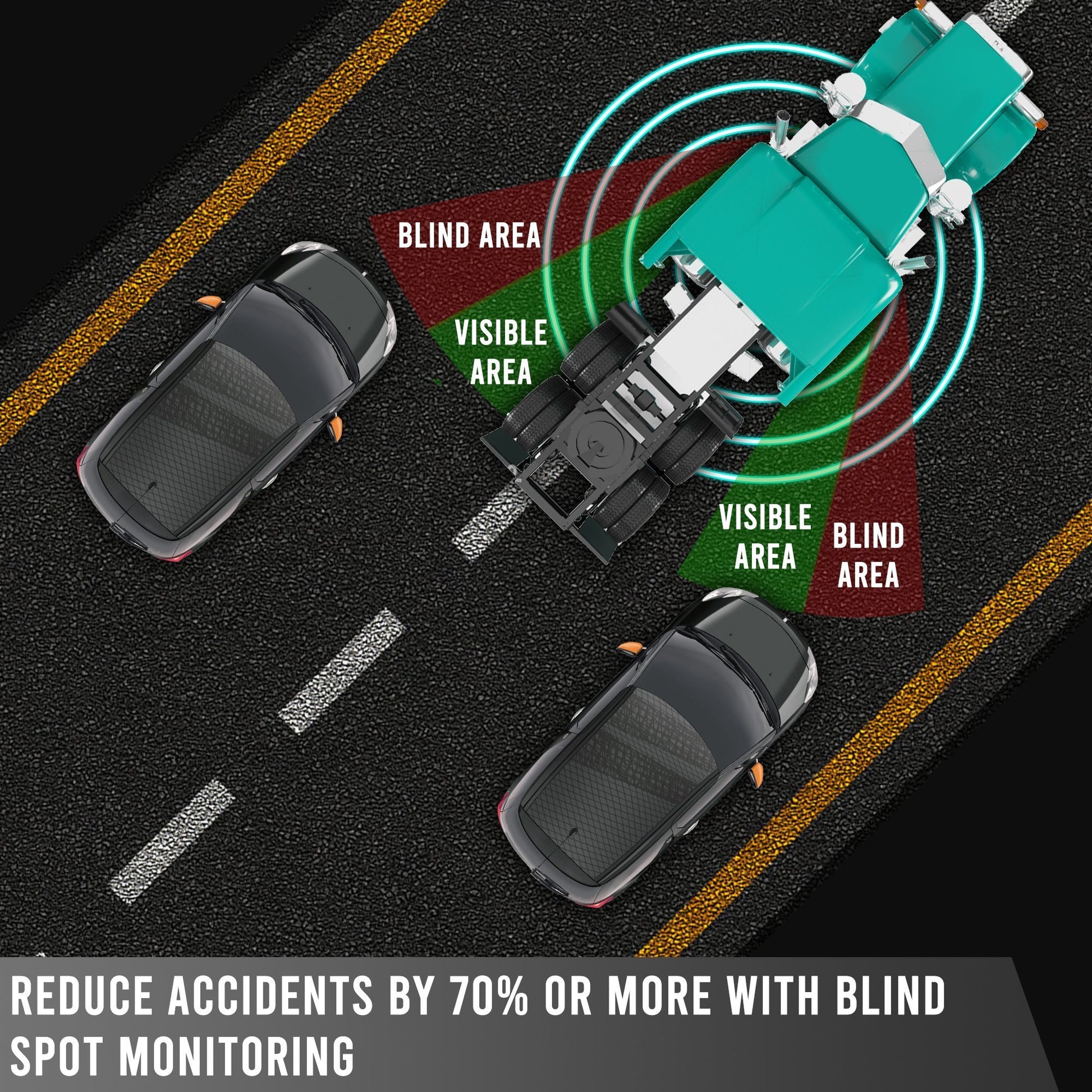

Wired DVR Camera System With 10" LCD.  Record up to 4 viewpoints at the same time! Avoid accidents with blind spot monitoring.

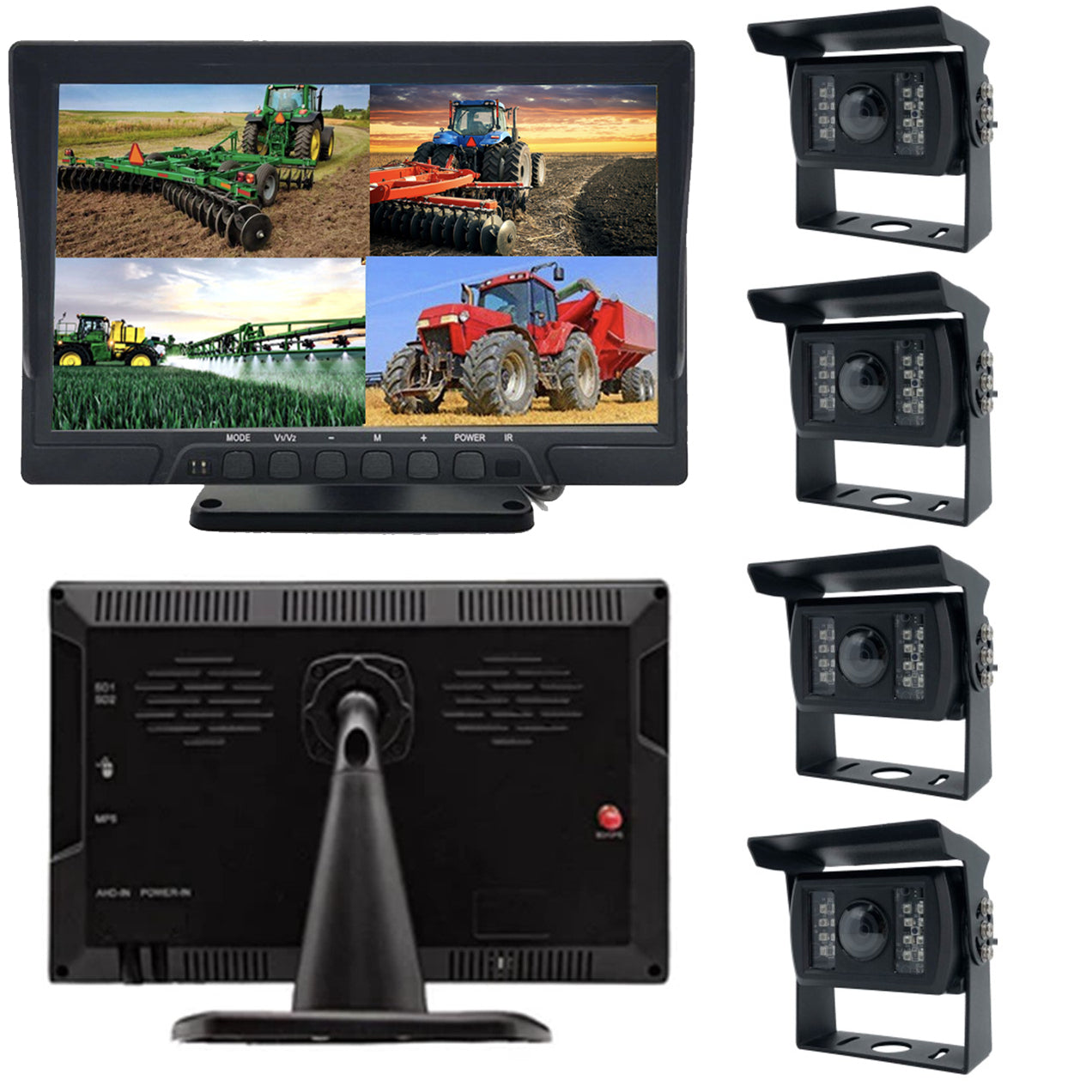

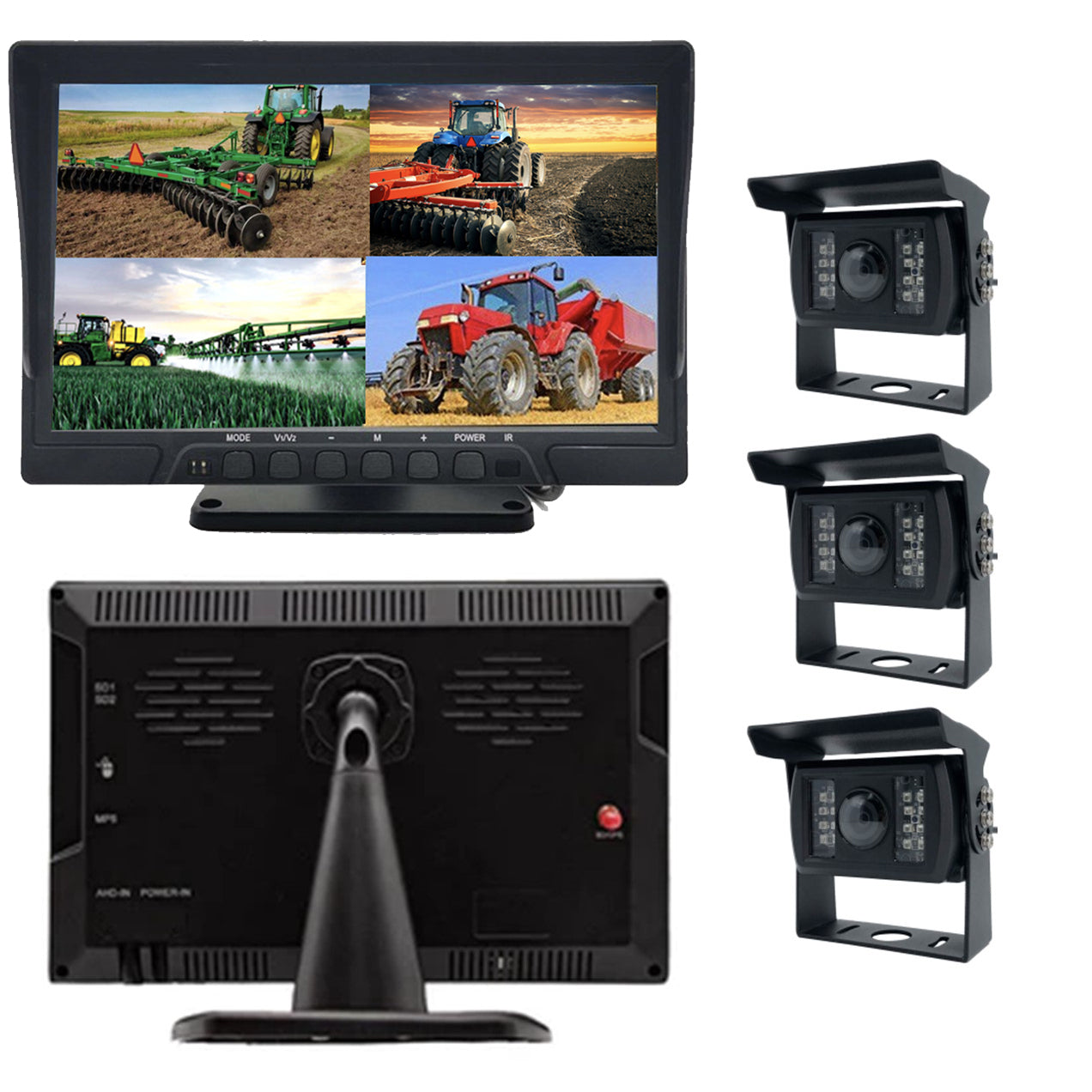

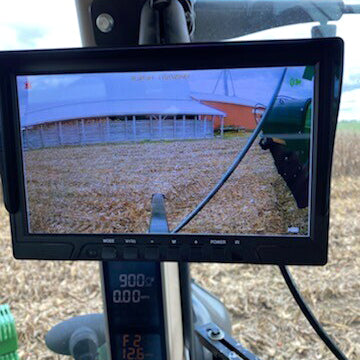

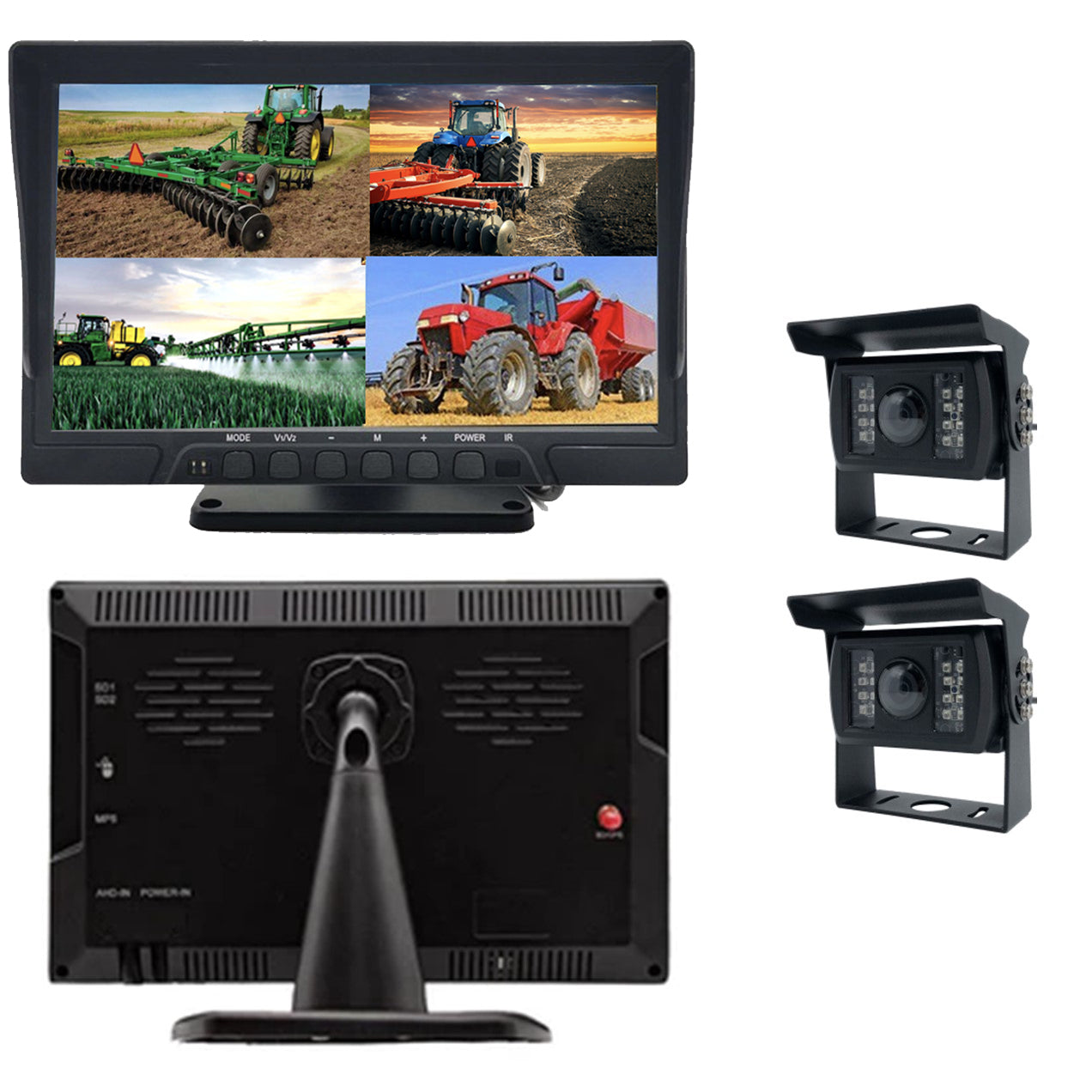

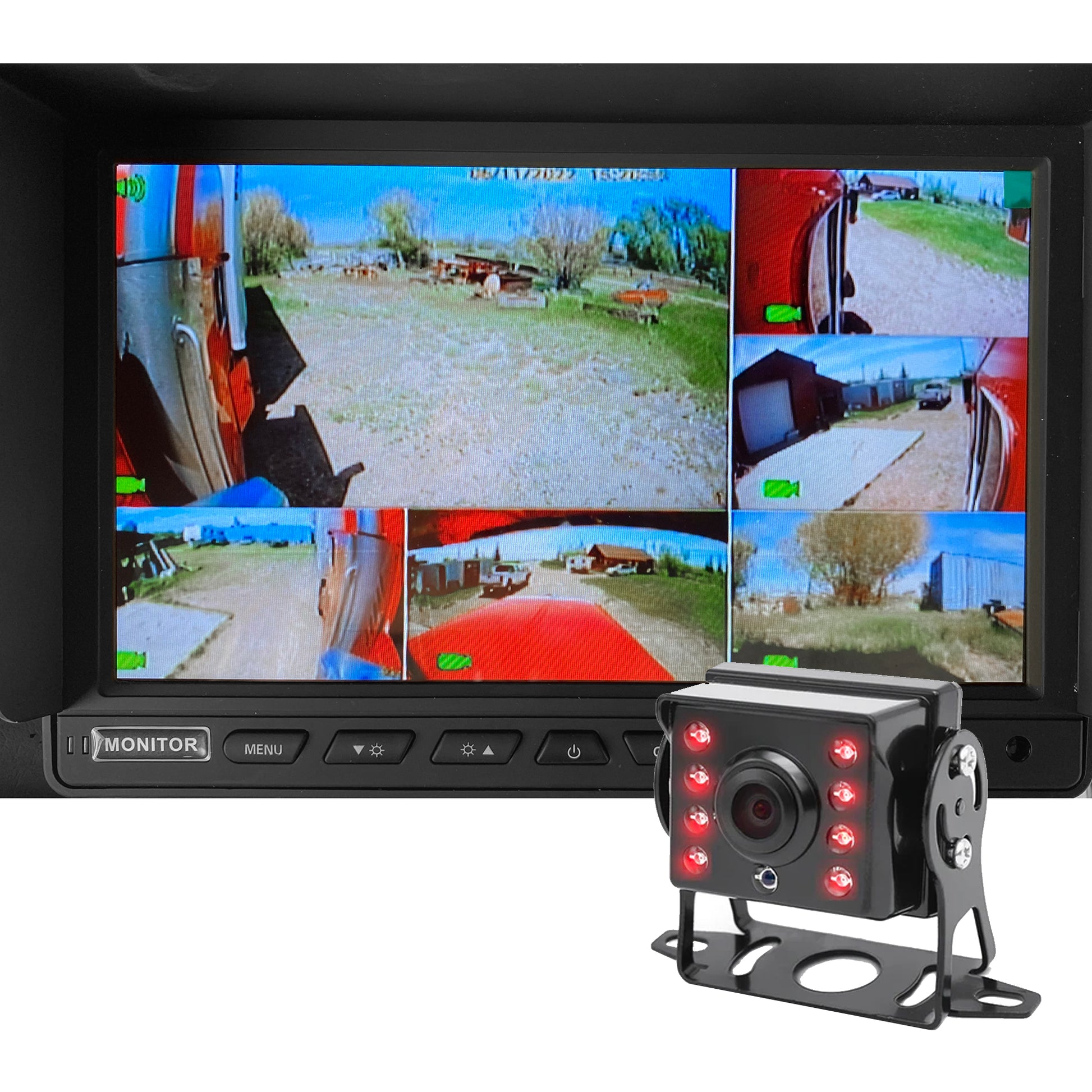

Our multi-camera system can use up-to four 1080P cameras that directly connect to a 10 inch color LCD monitor.  This 10 inch monitor allows for single camera viewing, dual camera split screen viewing and quad viewing of all 4 cameras at the same time. The LCD monitor has a built-in DVR with a dual secure SD card slots that can hold up to 1024GB of max memory(2 x 512GB SD cards per slot).  A perfect multi-camera DVR system for truck drivers and fleets.

• Record 2-4 viewpoints using weather-proof heavy-duty bracket 1080P high definition cameras

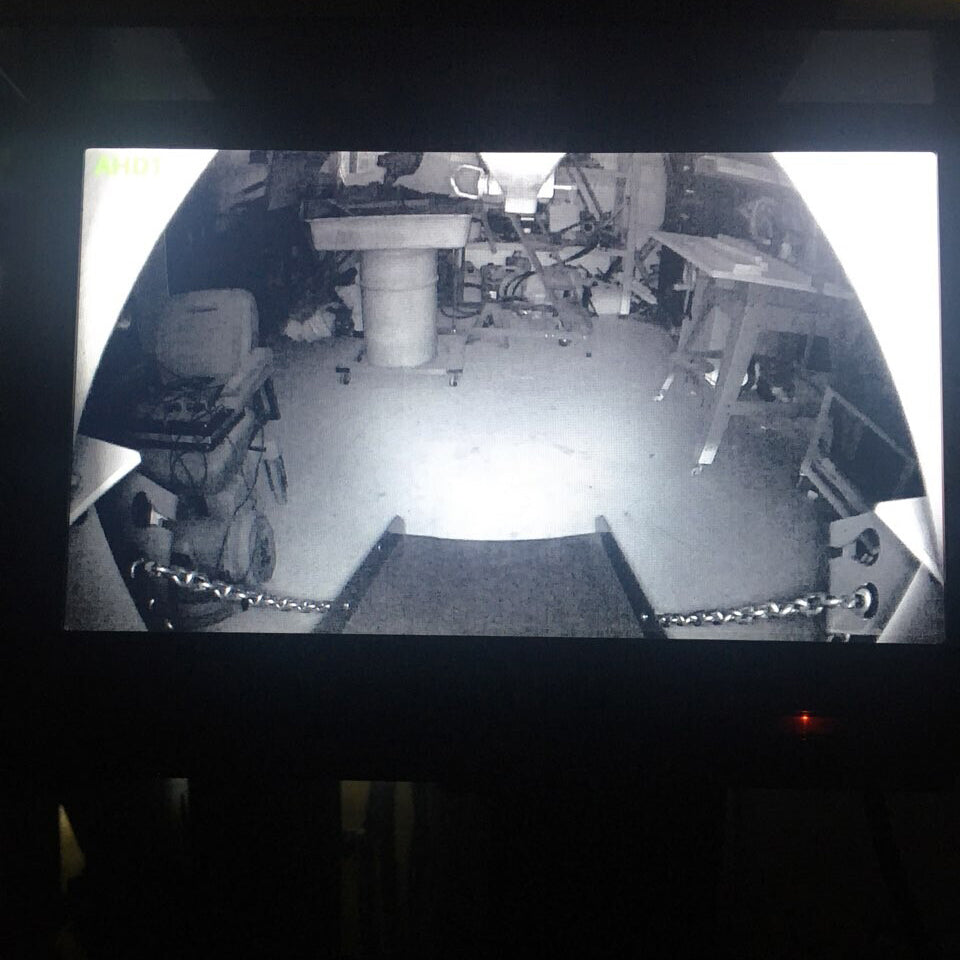

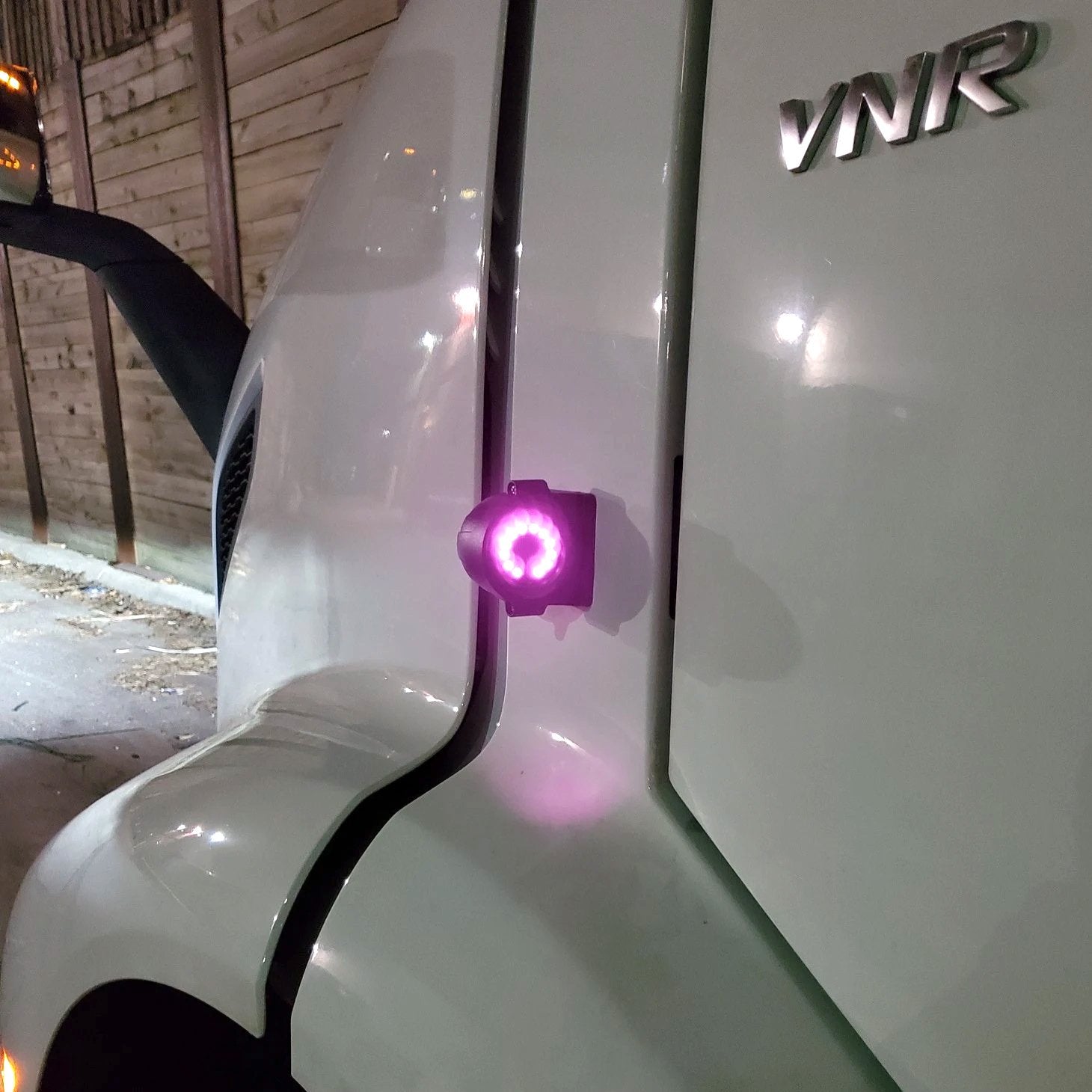

• 1080P cameras include 16 built-in infrared lights for great night recording
• 10" LCD with up-to 4 camera views at the same time
• 30 day money back guarantee
• 1 year warranty
• FREE 1-3 DAY SHIPPING
• Simple and easy installation process

System Highlights:

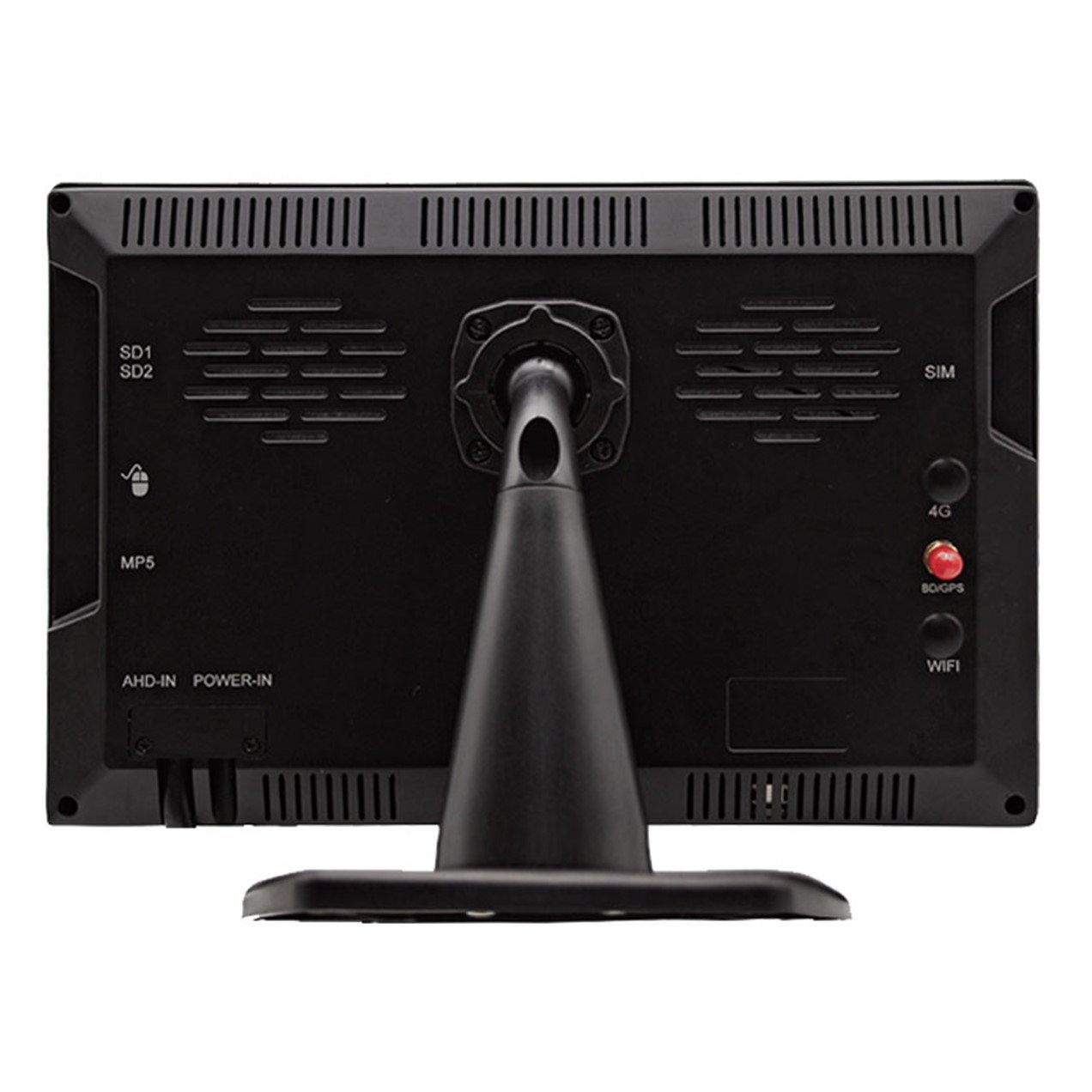

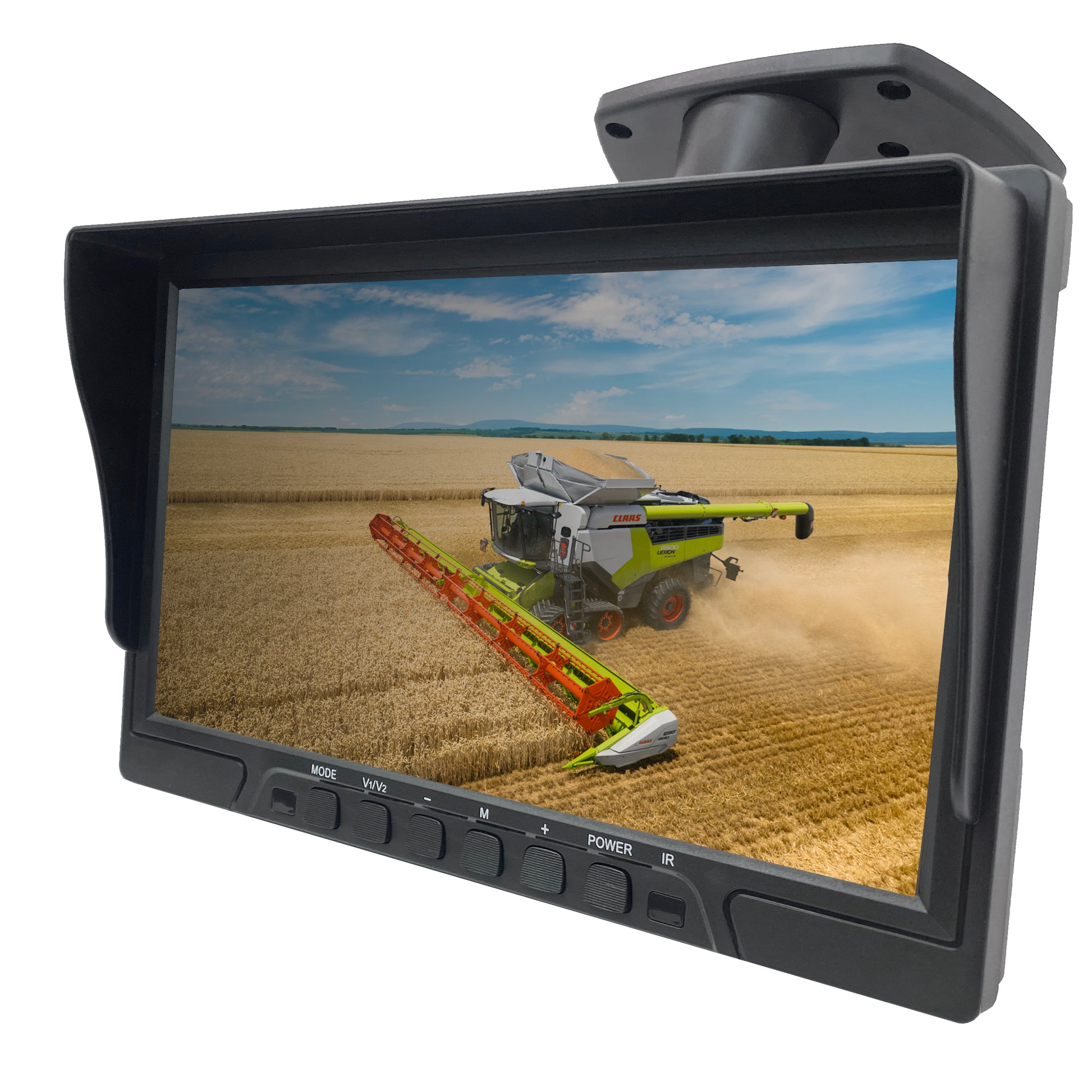

• 10" Color LCD Monitor with Built-in DVR with Dual SD Card Slots
• SD Card Slots is Secure with a Key-Lock to Prevent Unauthorized People From Accessing SD Cards

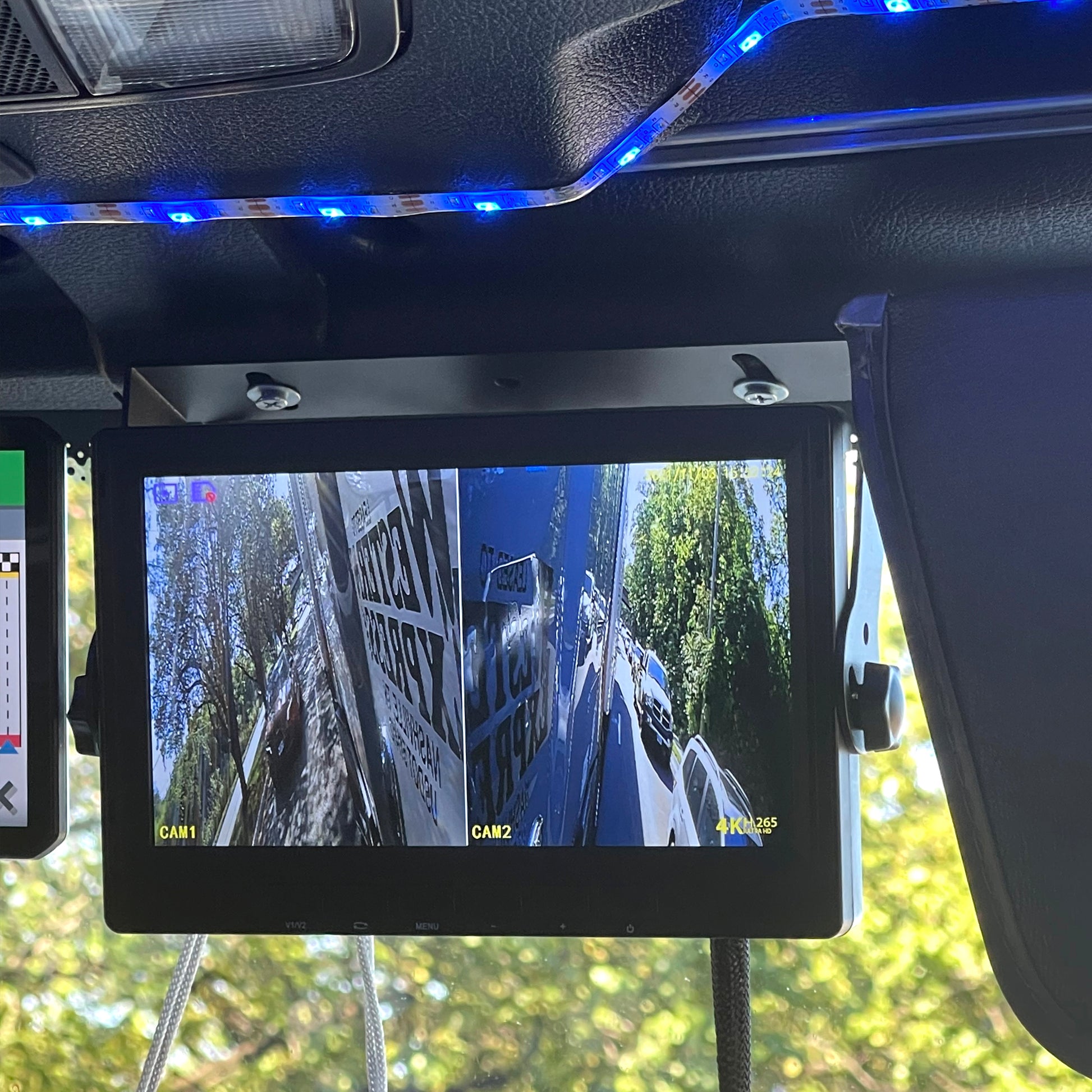

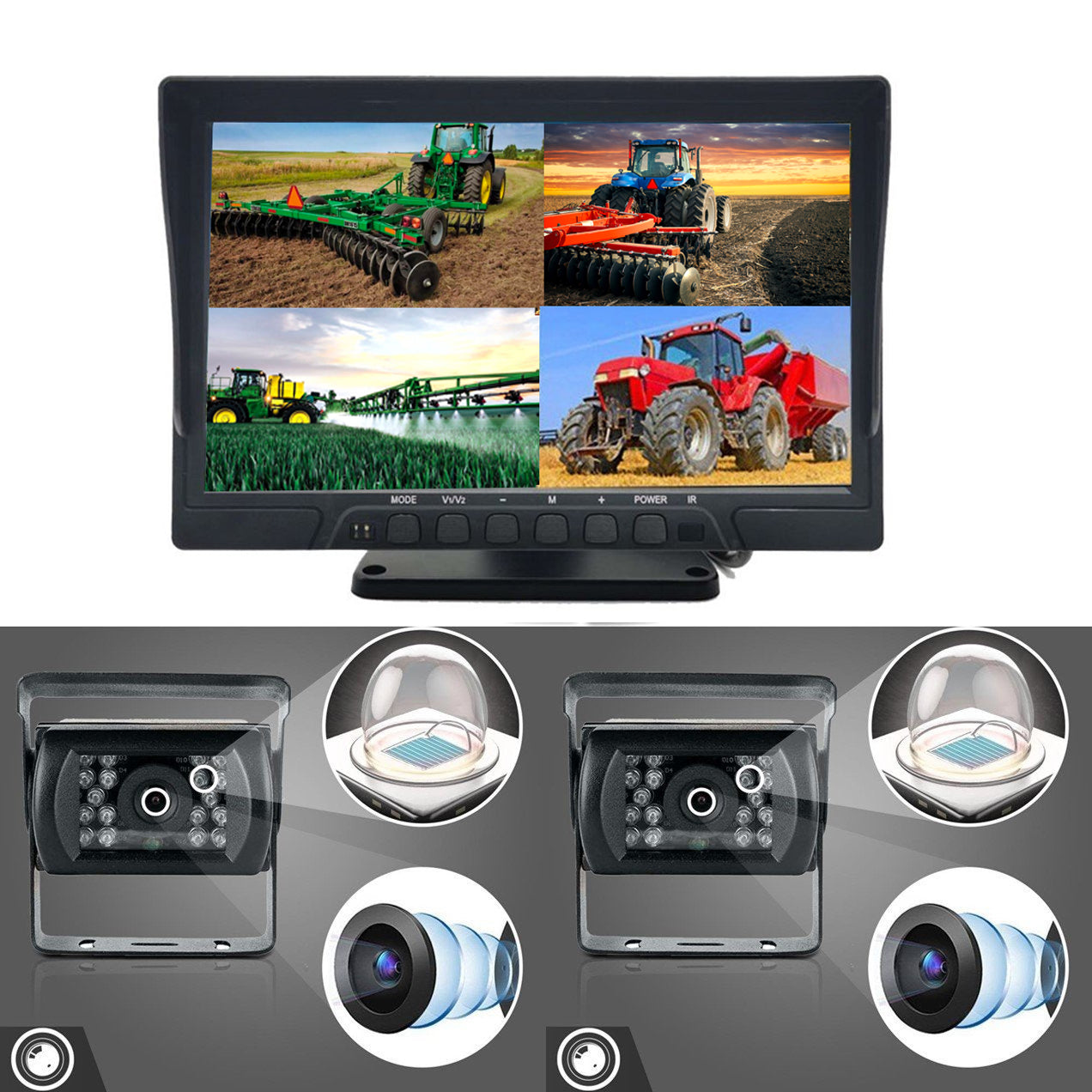

• Multiple Viewing Options - Allows single viewing, dual split screen viewing and quad viewing modes
• Dual USB Port - Connect wireless mouse or easily export videos

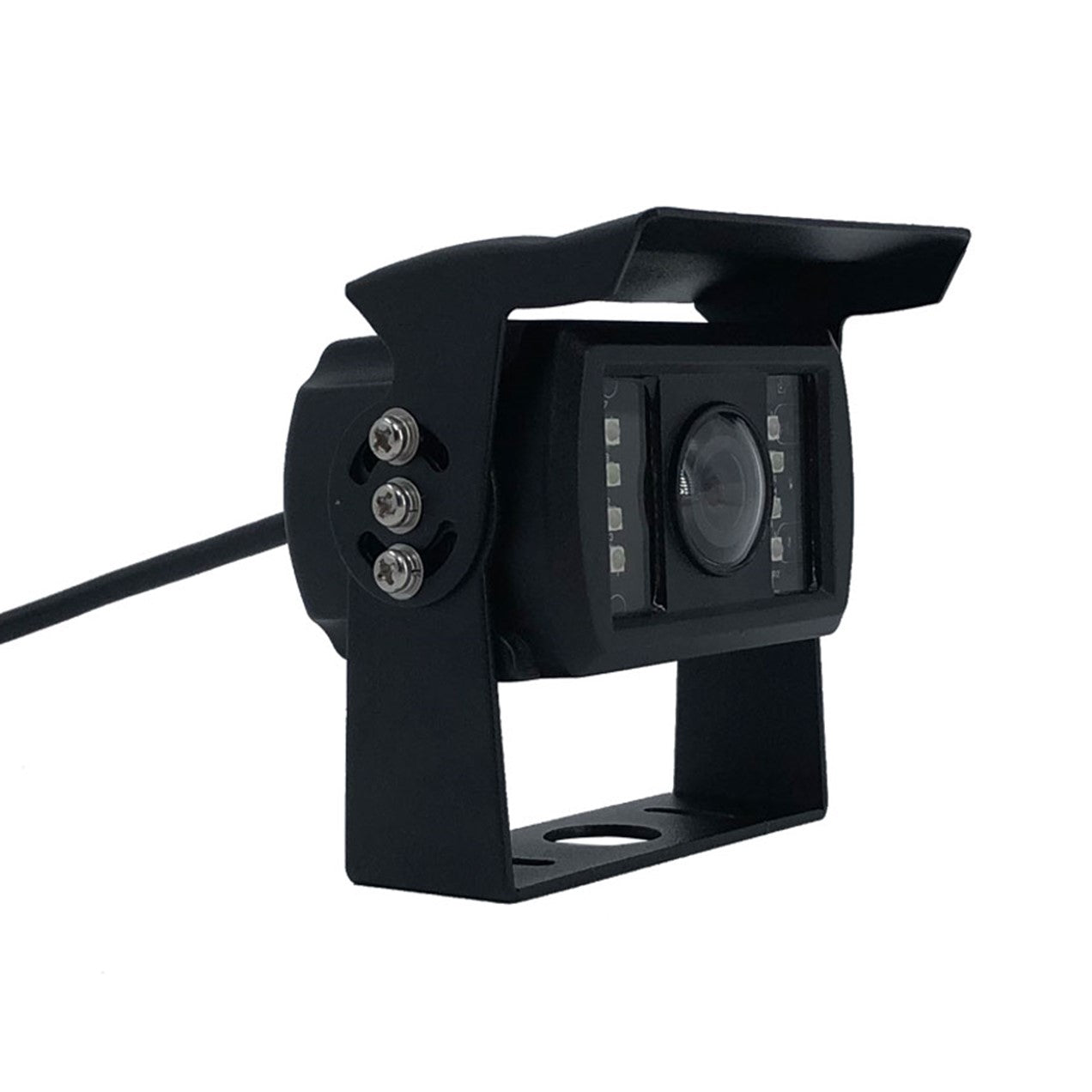

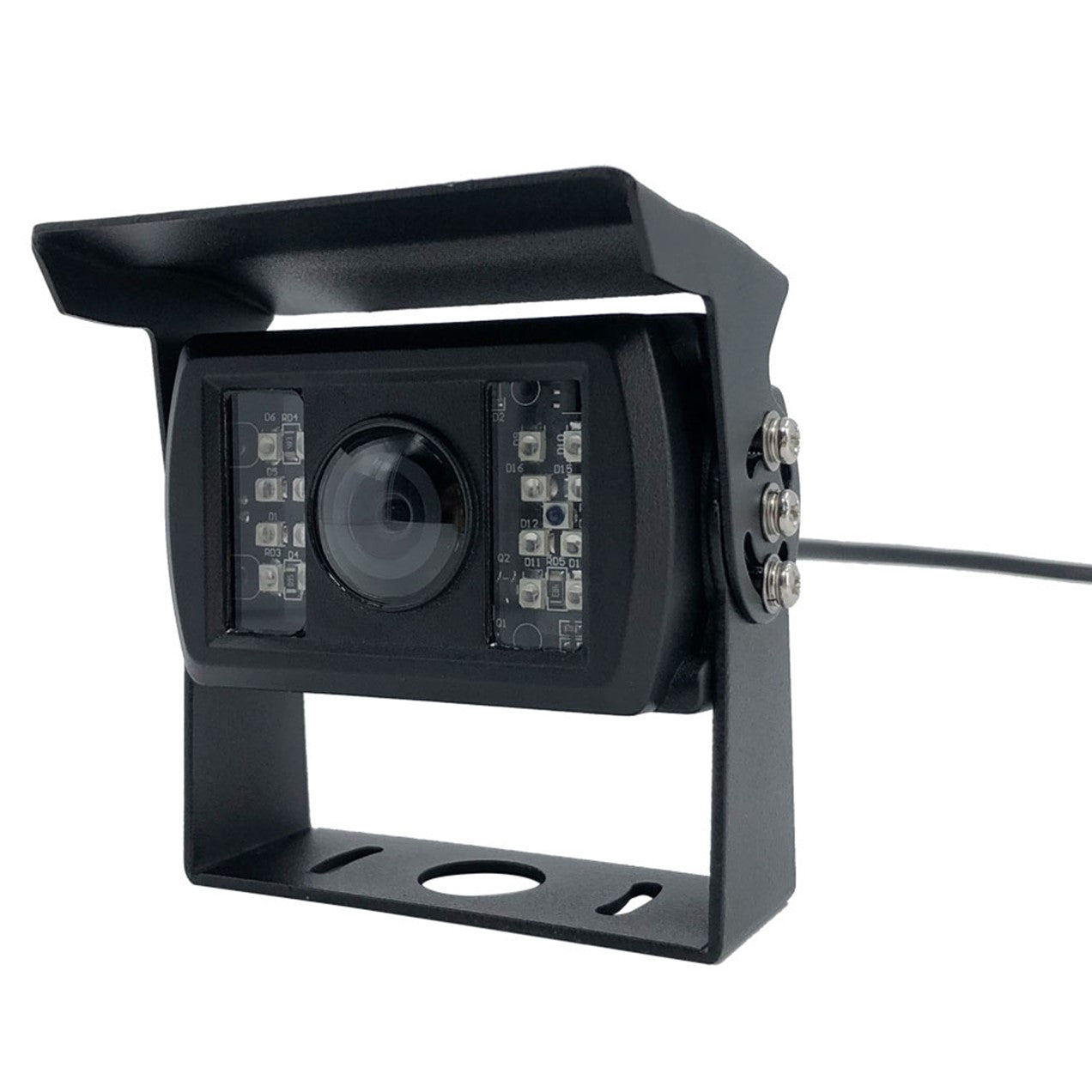

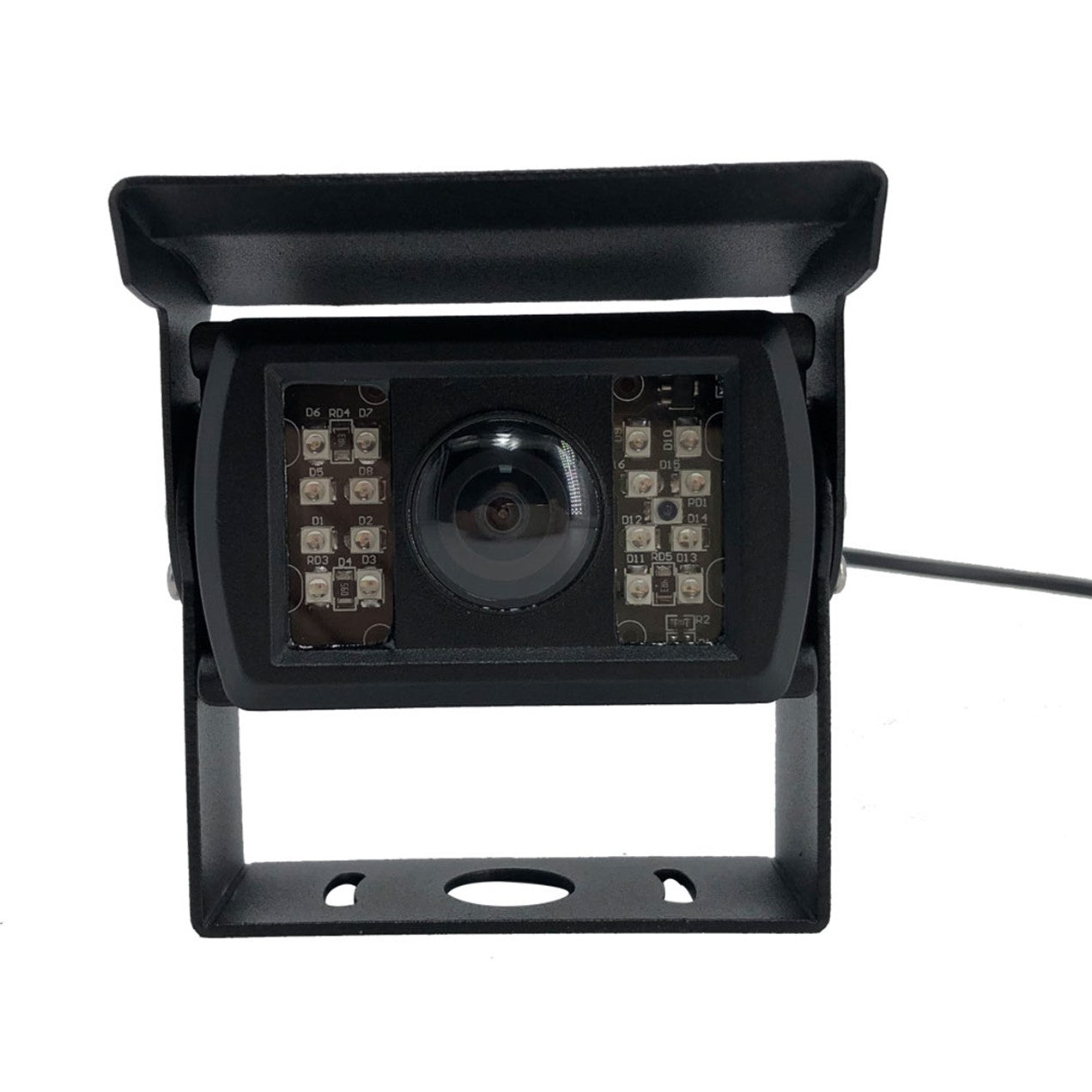

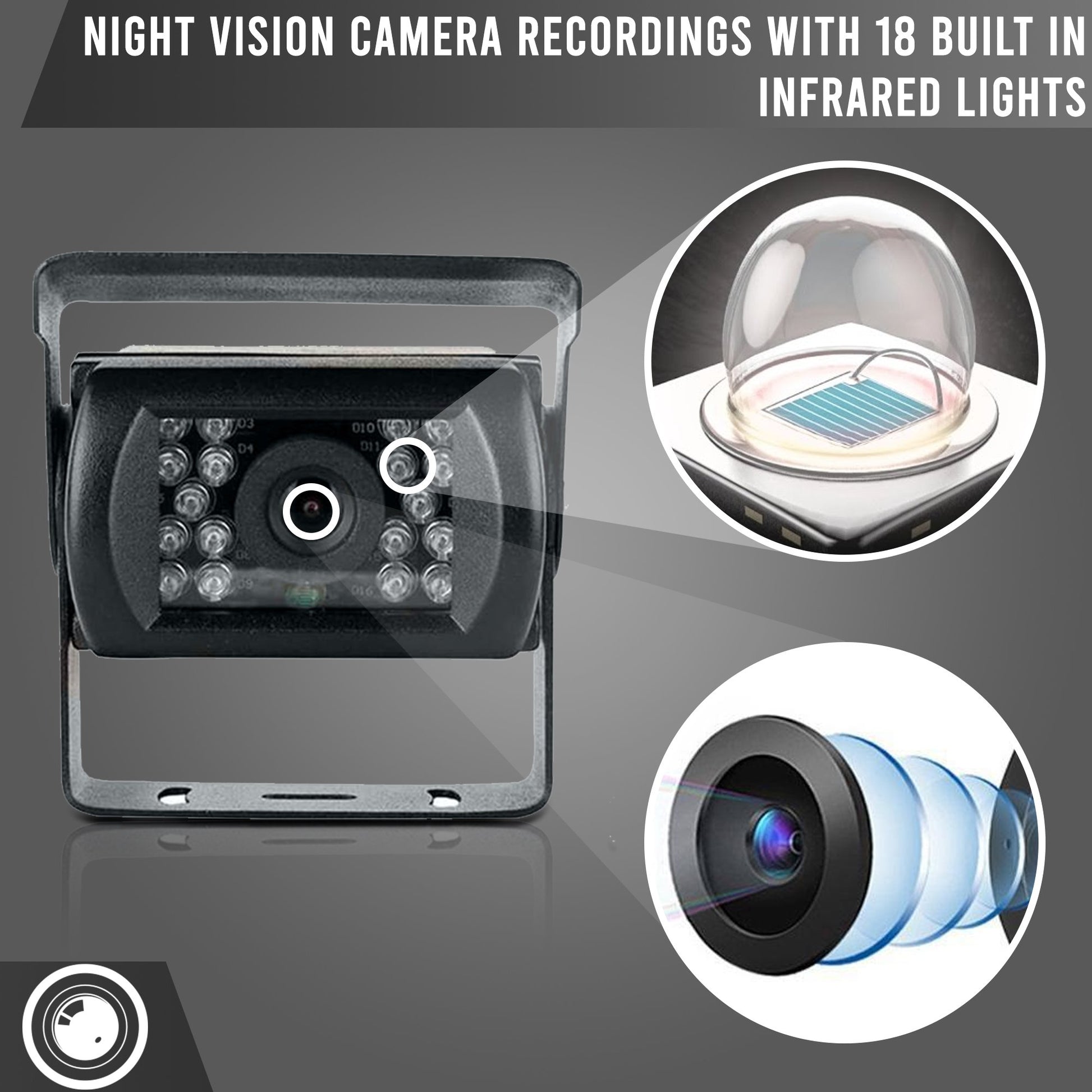

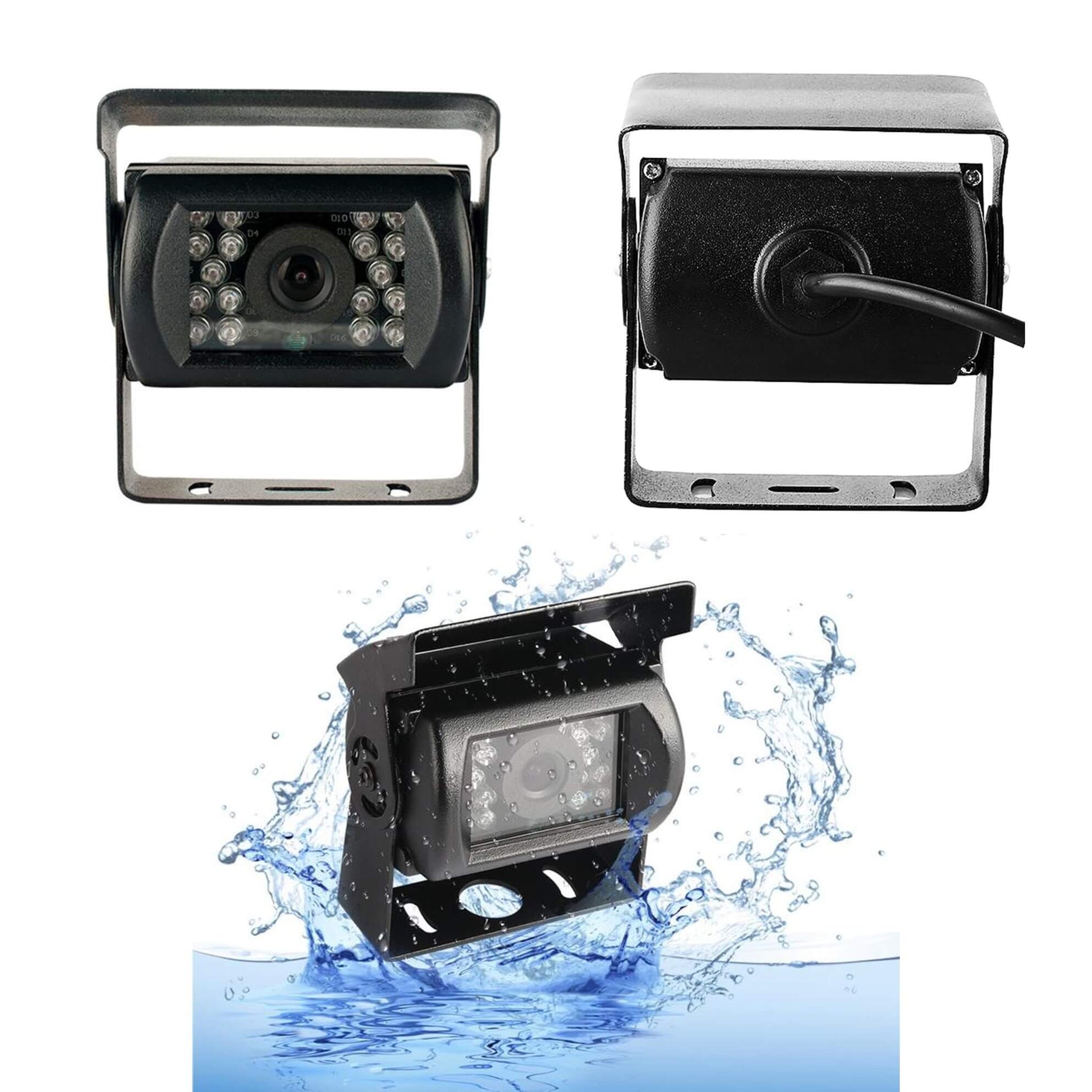

• Weather-Proof 1080P Heavy Duty Cams With Built In 18 High-Powered IR LED Lights

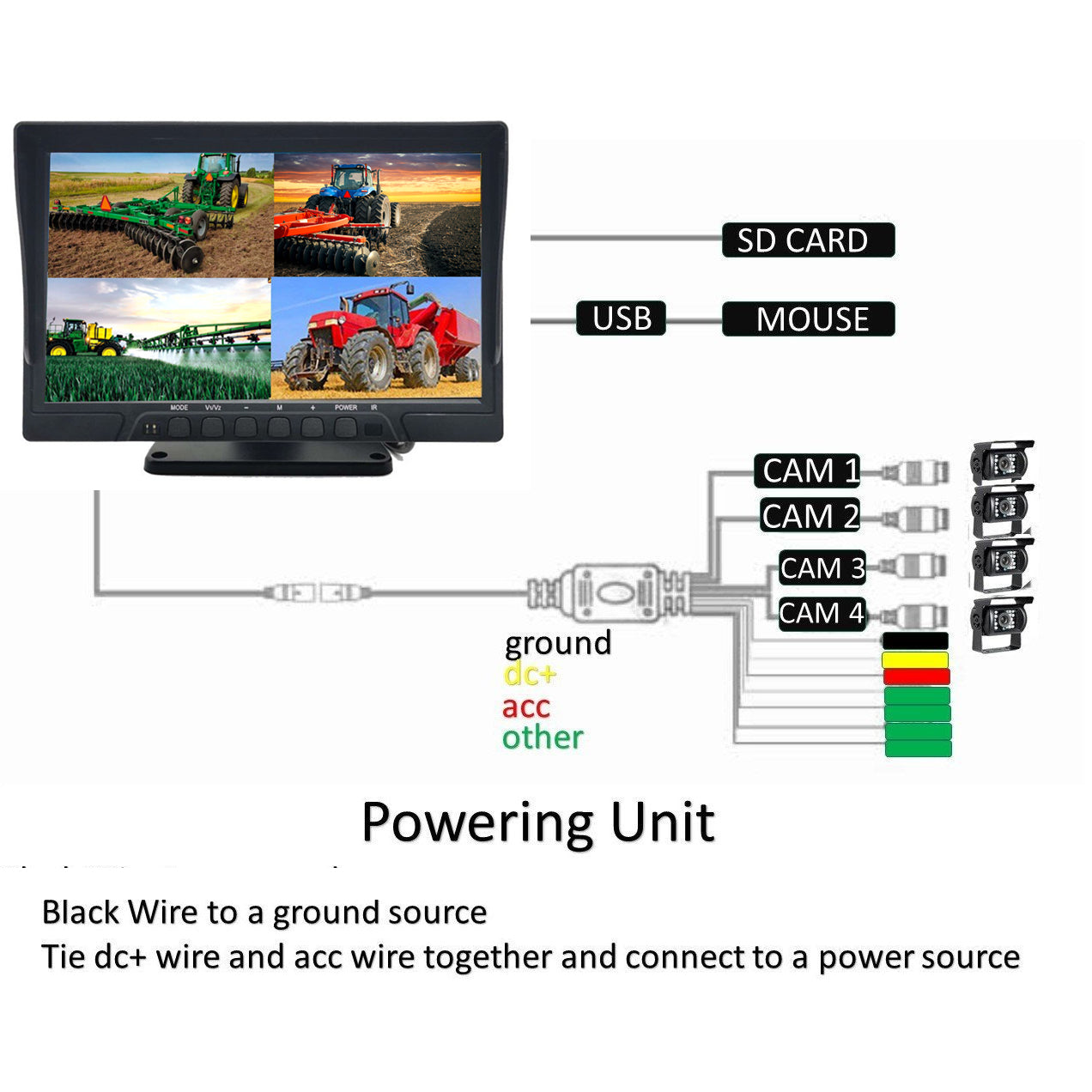

• Directly Hard-Wired to Any 12V-24V DC Power Source or Use the Included 12V CLA *All parts and wiring included to get you up and running!
• Easy to Read English Installation Manual
• Easy Installation Setup.

* SD cards not included - You can purchase any class 10 or higher standard size SD card up-to 512GB per SD card slot

Standard multi-camera recording DVR system includes two 1080P cameras, 1-15 foot cable and 1-30 foot cable. Upgrade your system by selecting 3 or 4 cameras or you can add a 3rd and/or 4th camera during "add to cart" process or order at any time.

• Chipset Hi3520D V300
• Screen Size 10.1INCH
• Screen Ratio 16:9
• Black Light Luminance LED,500cd/m2
• Resolution 1024*600
• Operation Langue Chinese/English/Spanish etc
• Viewing Angle Hor: L(70) R(70); Ver: UP(50) DOWN(70)
• Image Reversion UP/Down and Left/Right
• Power Requirement 12 / 24V DC , Range 11-32V DC
• Power Consumption ＜8W
• Shockproof Level 10G

MONITOR DVR SPECS

• Video Compression H.264
• Resolution 1080P Real-time Recording
• Storage Support Max 1024GB with 2 x 512GB SD Cards

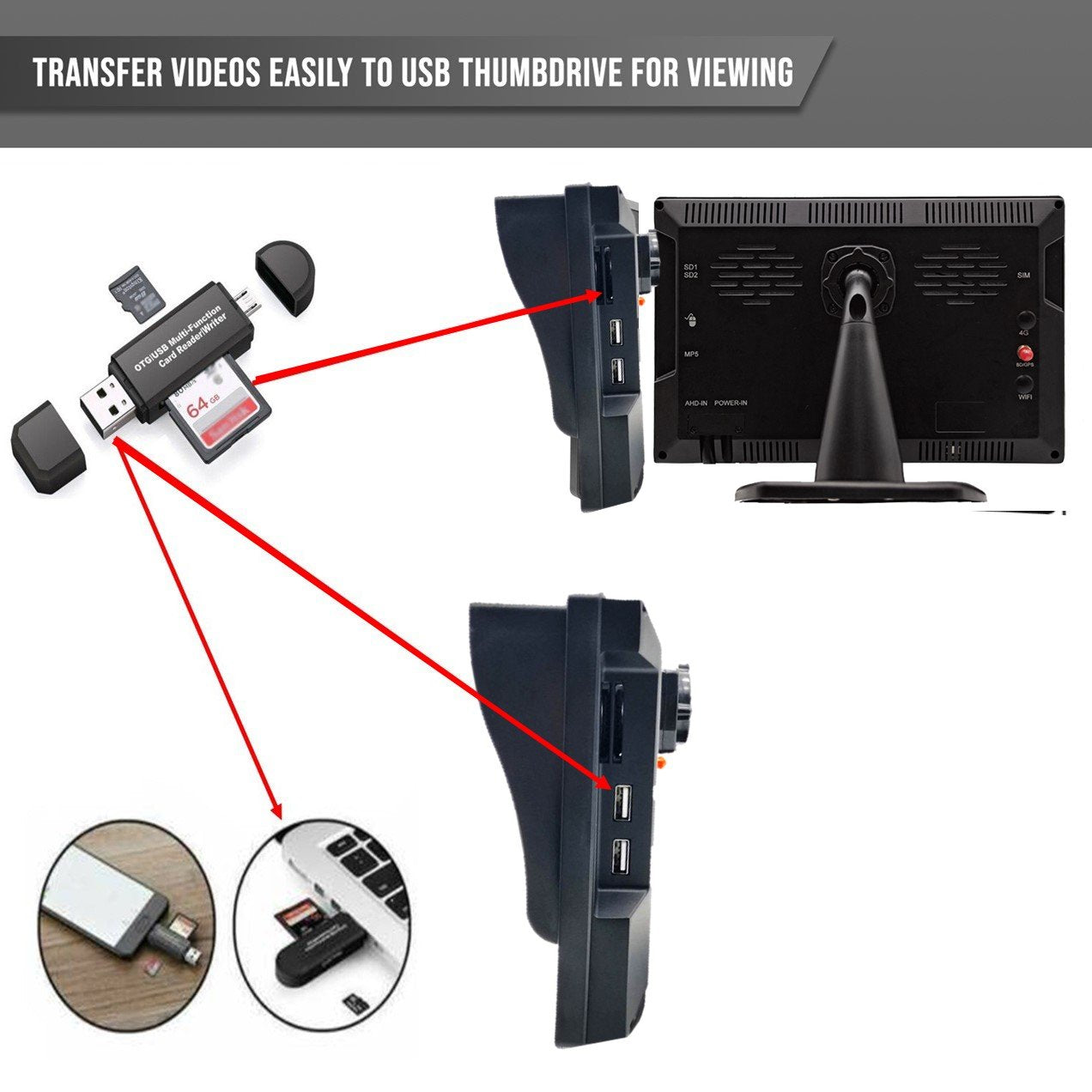

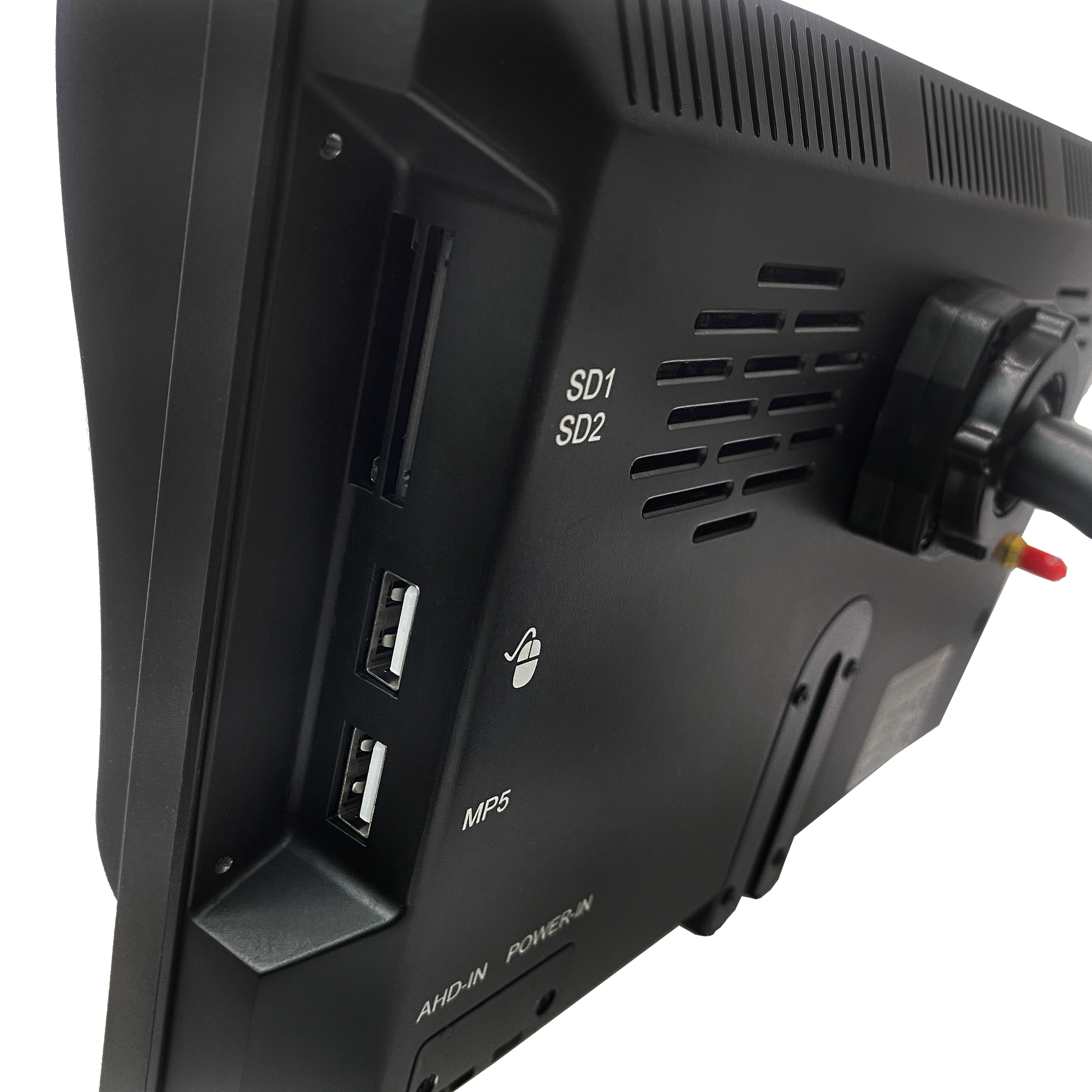

• Dual USB Ports Supports Wireless Mouse or easily export videos
• I/O Sensor 4-CH Alarm Input
• DVR FEATURES
• Latest Chip Set Technology
• 10.1INCH 1024*600 HD MONITOR 4-CH 1080P Real-Time
• Recording Supports up-to 512GB SD Card per sd card slot
• 4-CH Alarm Input,1-CH Alarm Output
• Channels - 4-CH
• Temperature -20℃ to 70

CAMERA

• Image Device: 1IP68K
• AUTO WHITE BALANCE
• TV System: PAL / NTSC
• Scanning System: 2:1 Interface
• Sync. System: Internal
• Resolution: 1280 x 1080 at 30 FPS
• Operating Temperature: -30°F~150°F, RH 90% MAX
• Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
• Gamma Consumption: 0.45
• AGC: Auto
• S/N Ratio: Better than 48dB
• White Balance: Auto
• Electronic Shutter: 1/60 (NTSC) ~ 1/10,000 Seconds, 1/50 (PAL) ~ 1/10,000 Seconds
• BLC: Auto
• Current Consumption: Max. 300mA
• Power Supply: DC 12~32V
• Operating Frequency: 2400 - 2483.5 MHz
• Receiving sensitivity: -78dBm
• Decompression form: MPEG4
• Transmitting speed: 12 Mbps
• Cable: includes 30' heavy duty cable (can upgrade to 60 or 90' if needed)

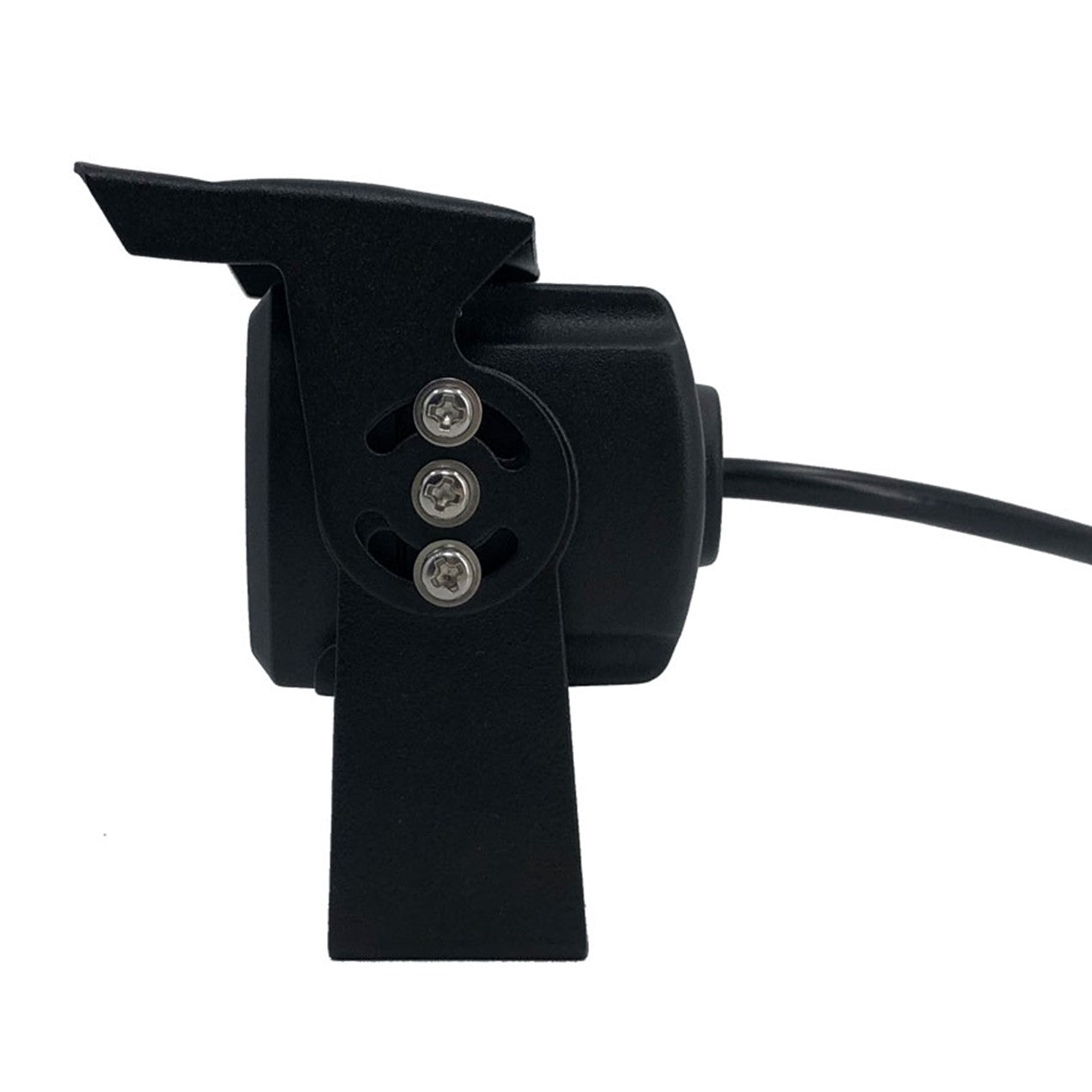

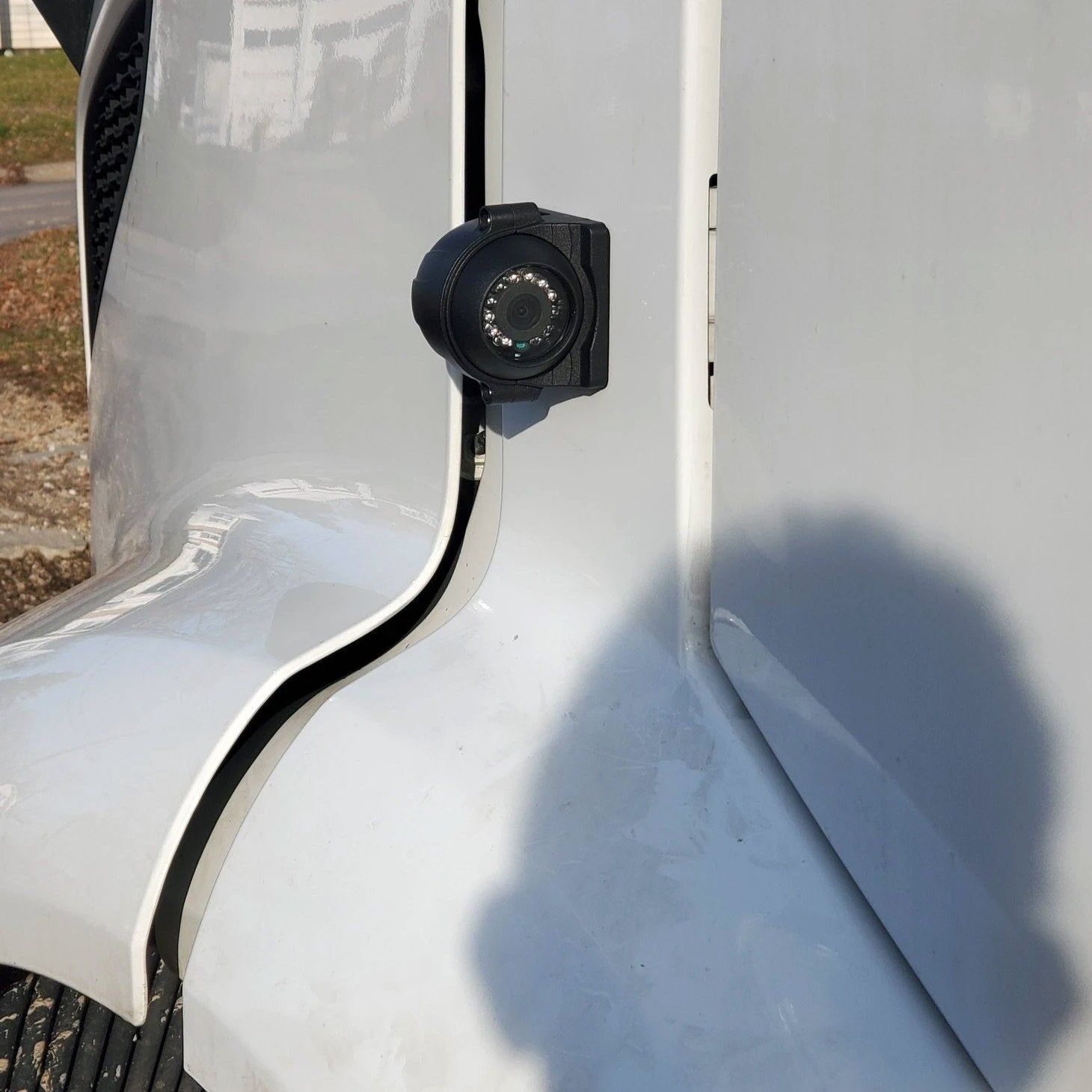

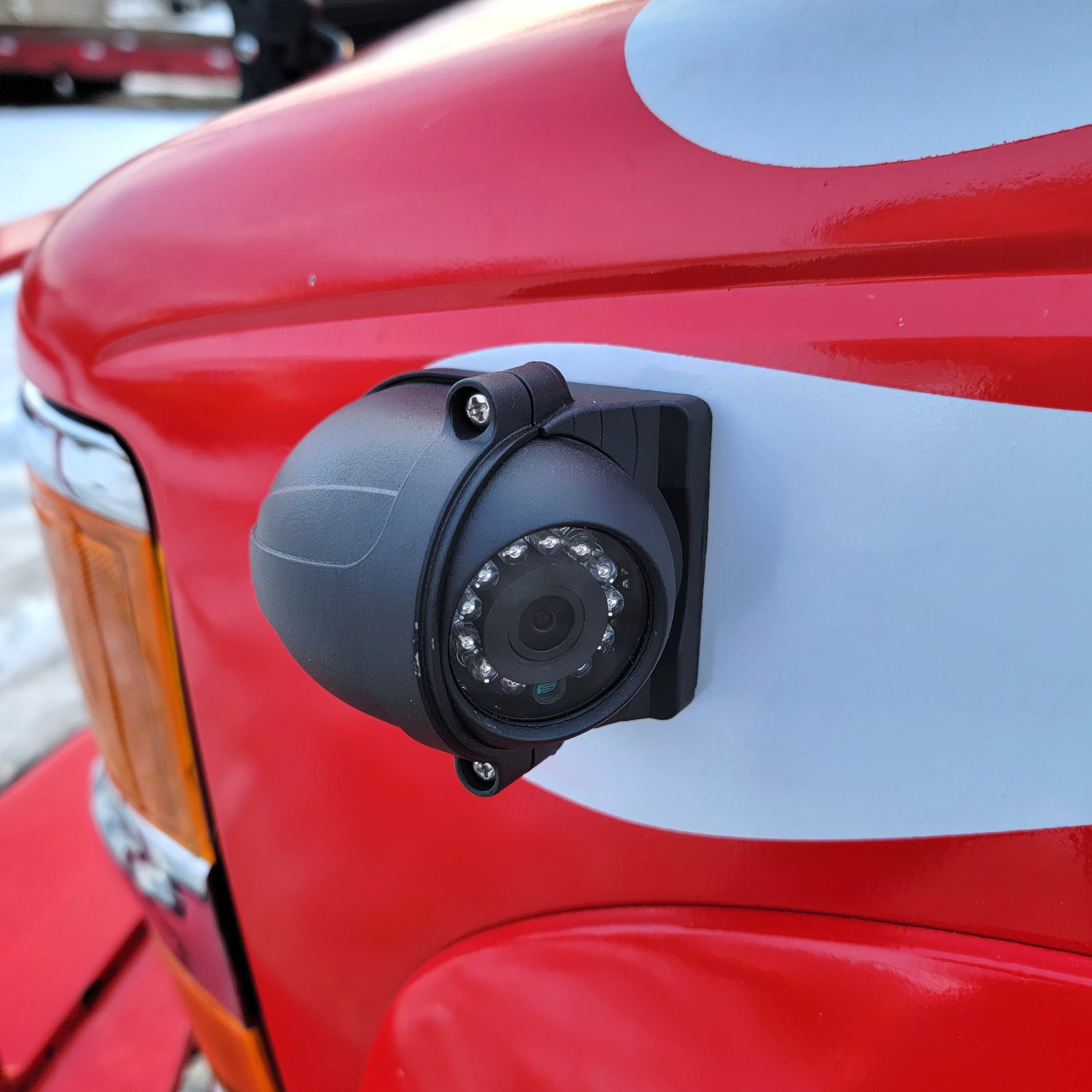

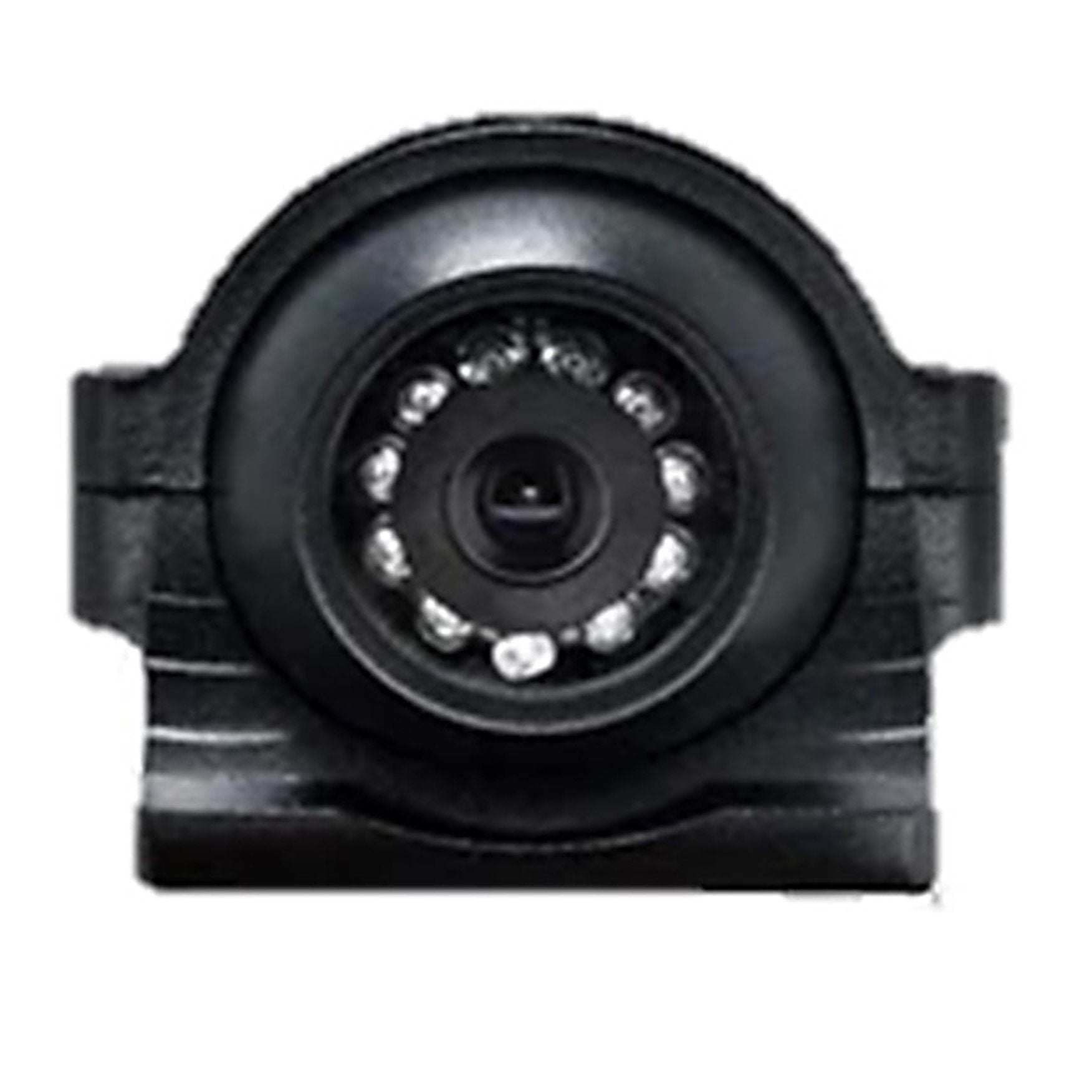

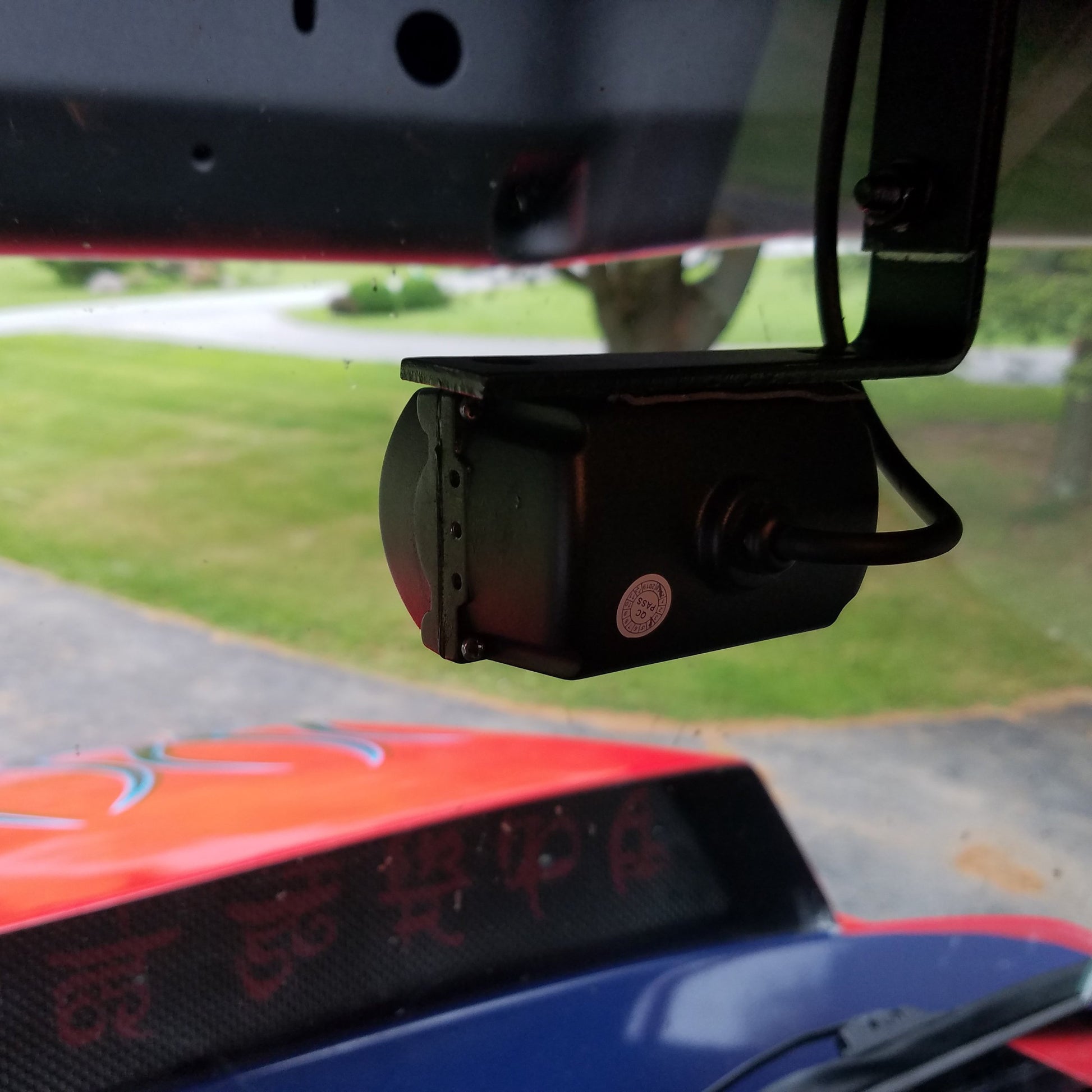

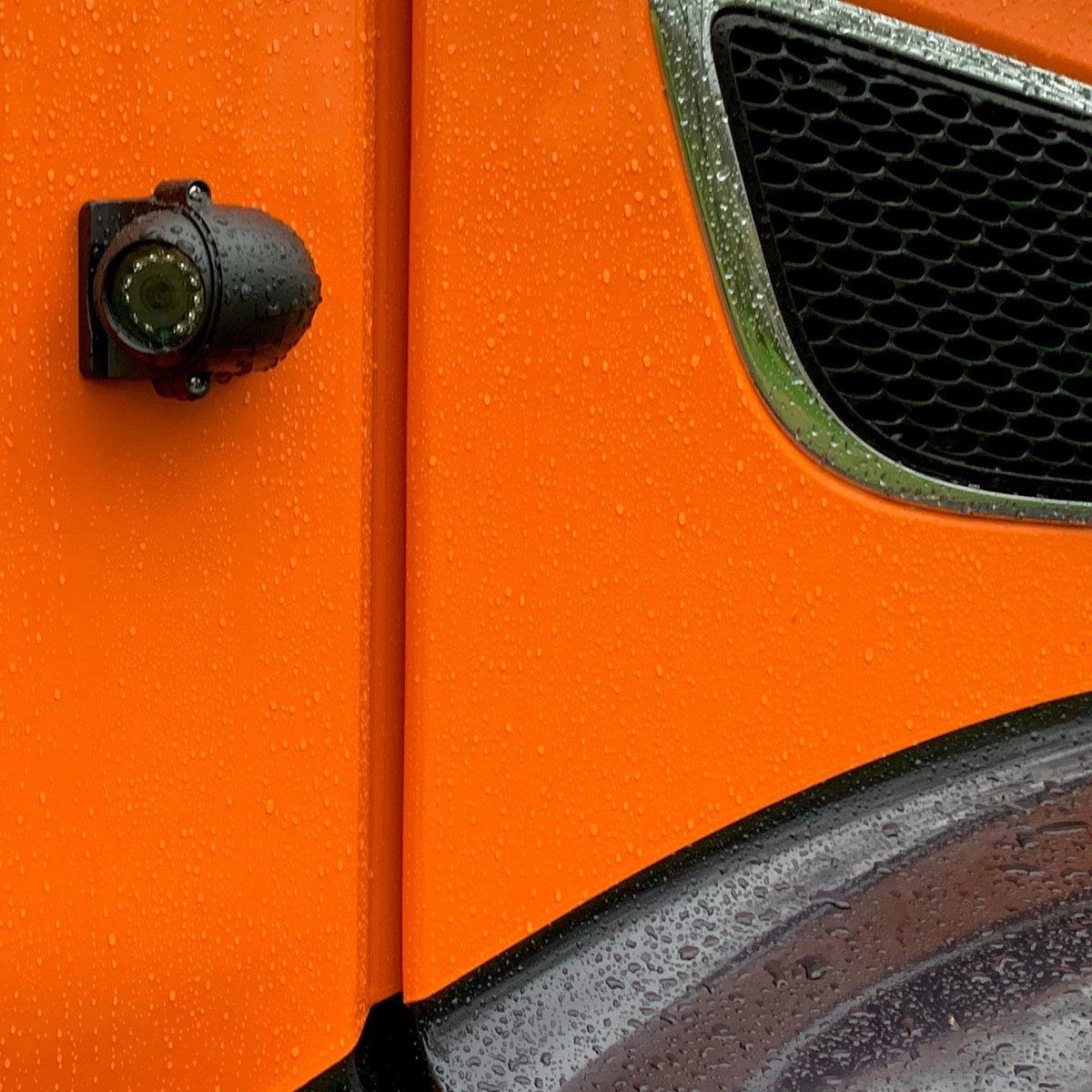

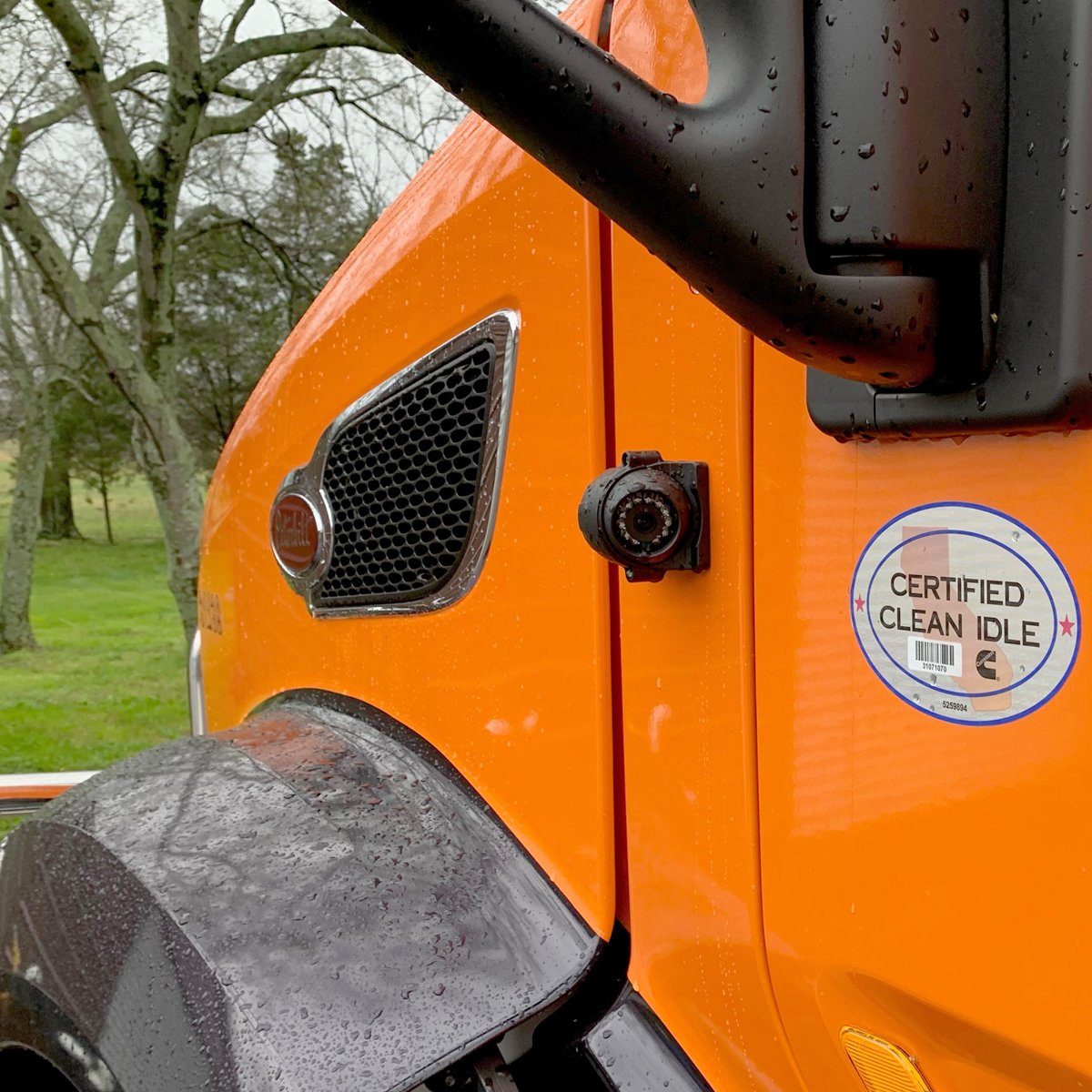

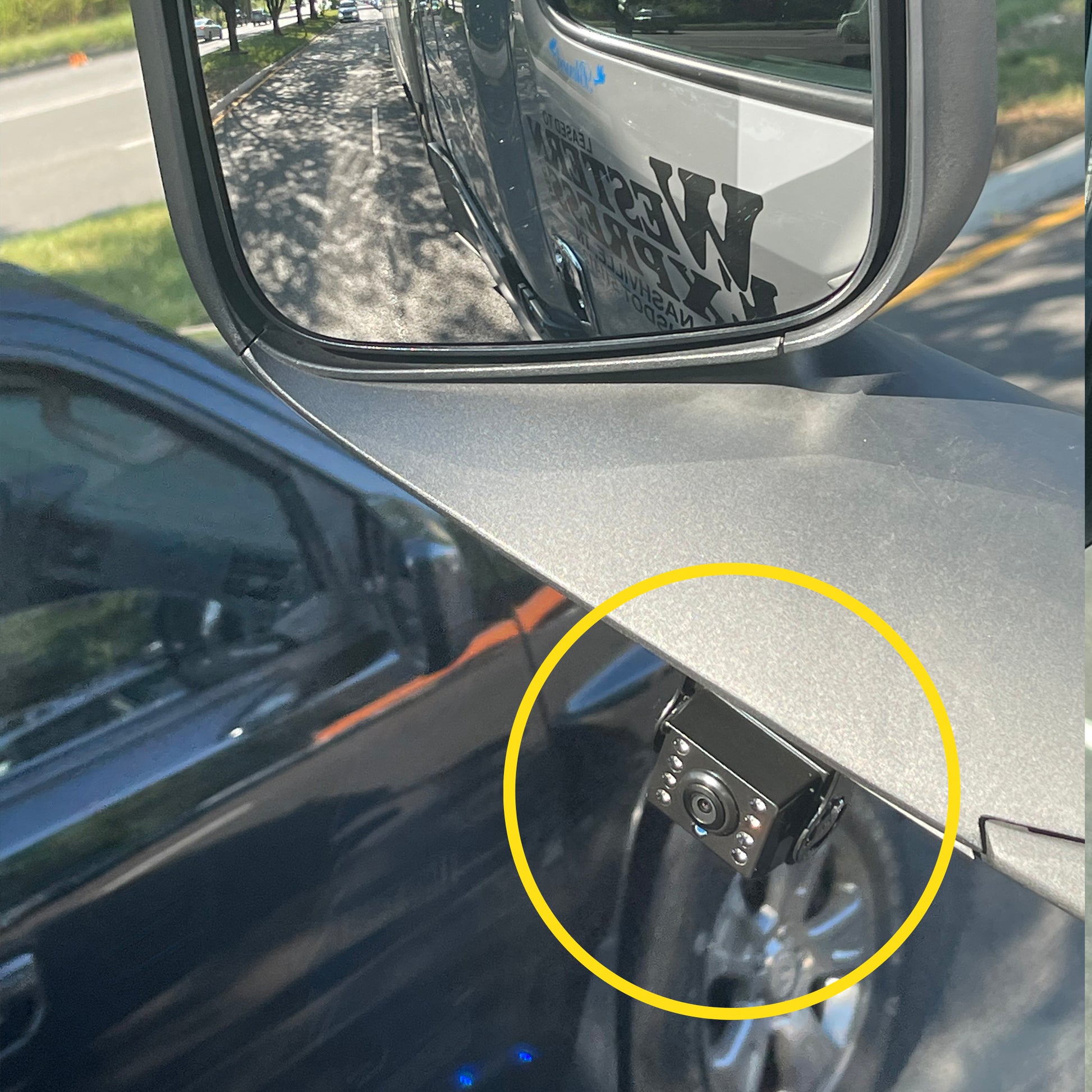

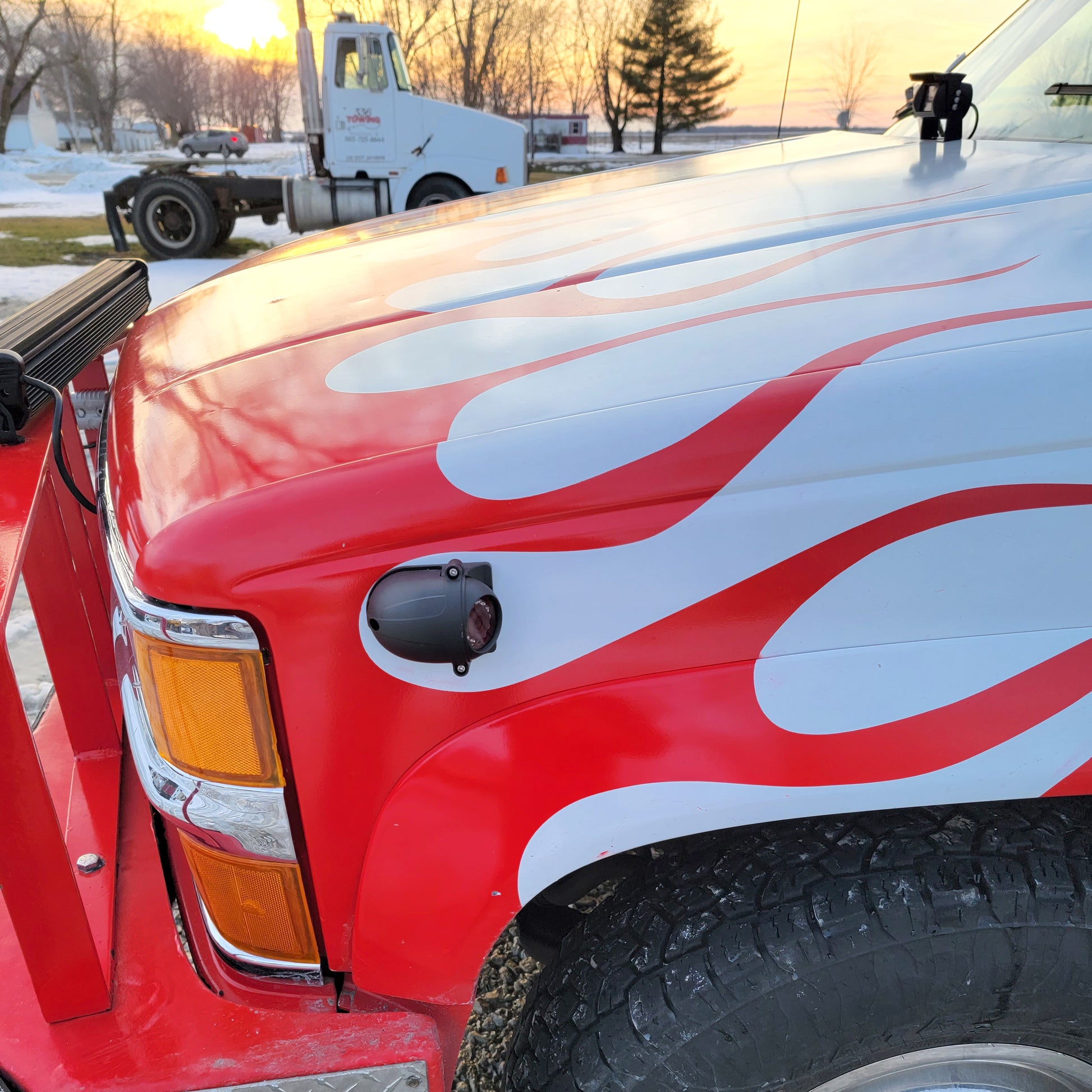

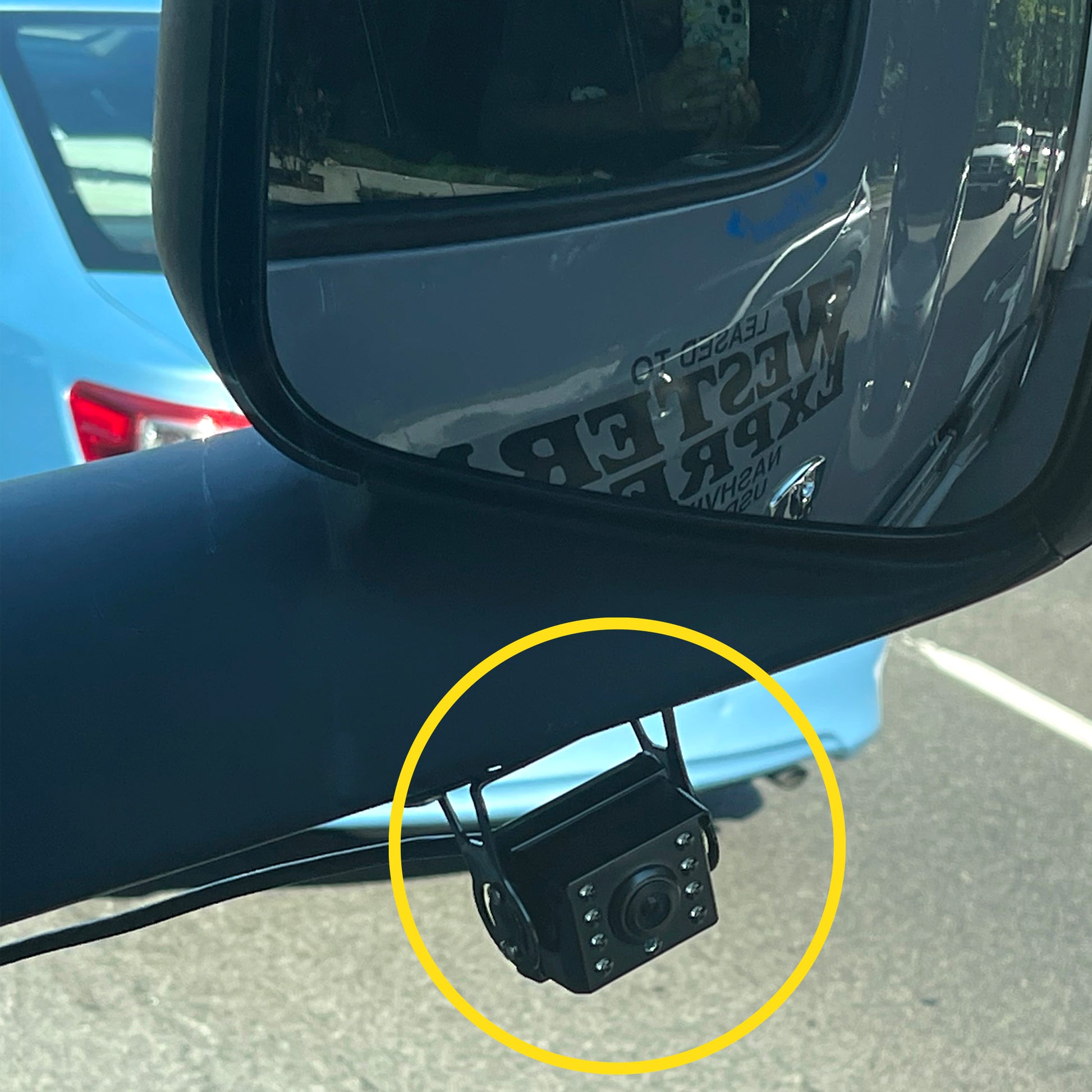

Aerodynamic 1080P Camera extremely versatile camera with adjustable angle designed for indoor, outdoor, dash or side installation. The housing is constructed of rugged metal and is aerodynamically designed to reduce wind resistance. Utilizing advanced technology to record sharp and vivid image quality. Equipped with built-in 12 IR LED to capture video in low/no light environment.

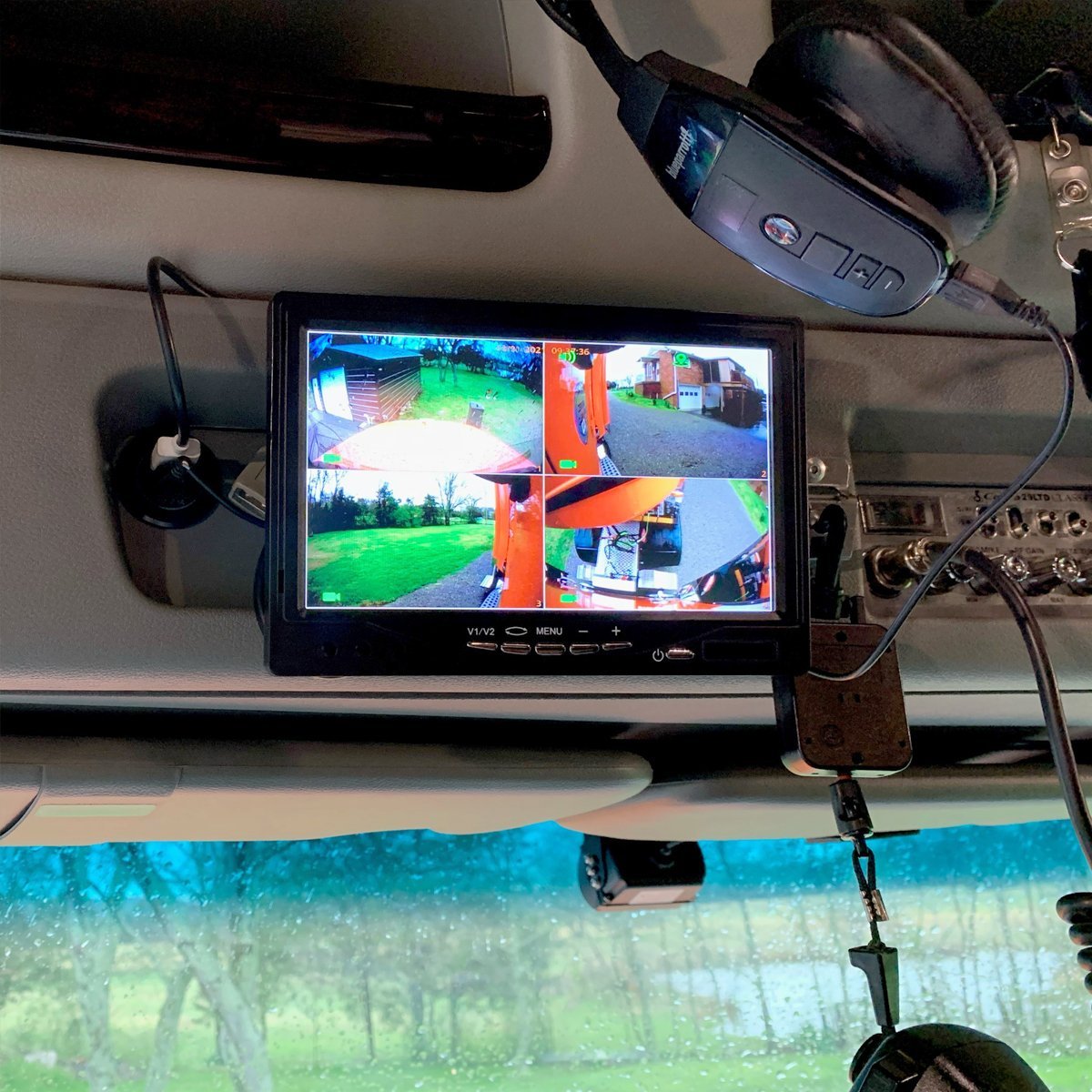

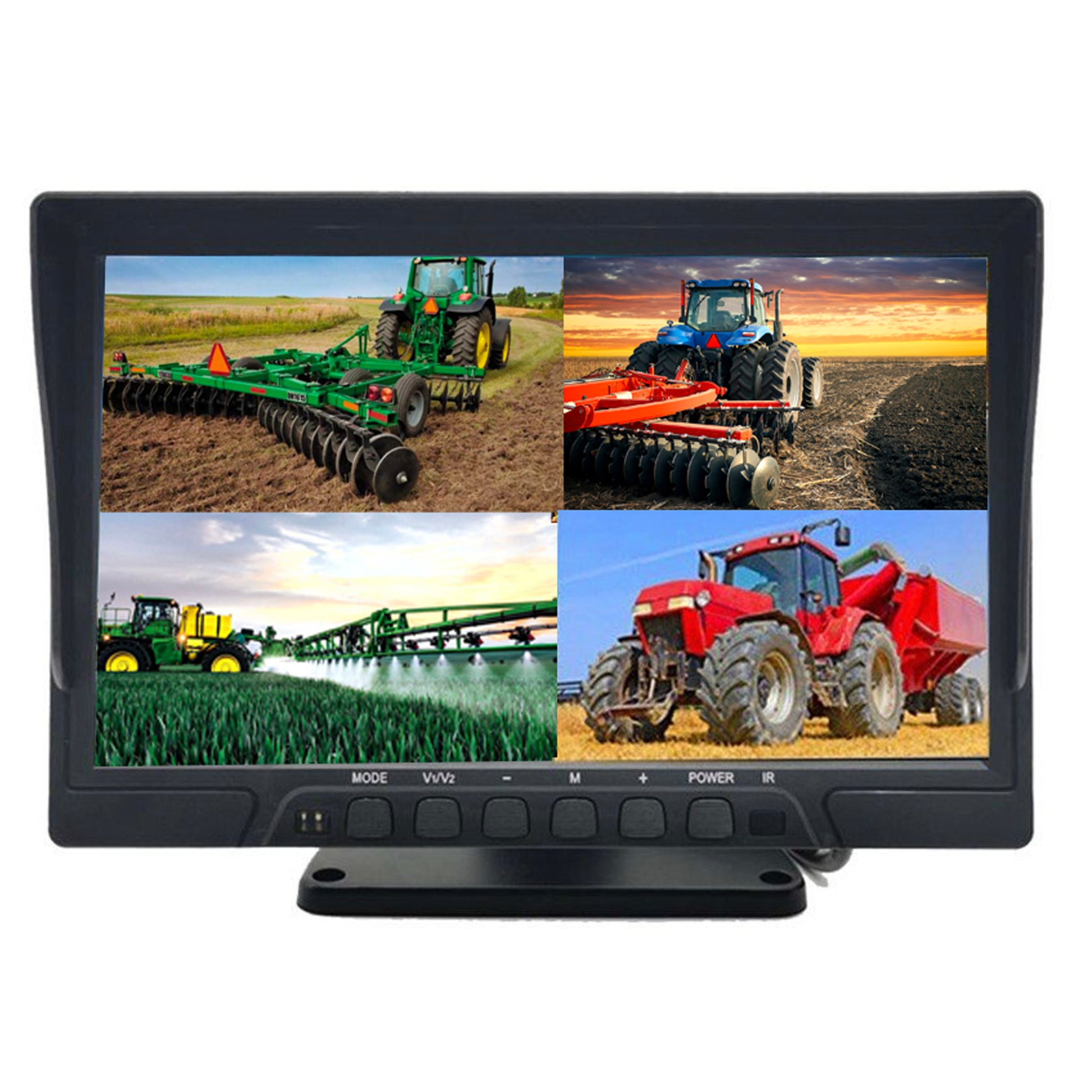

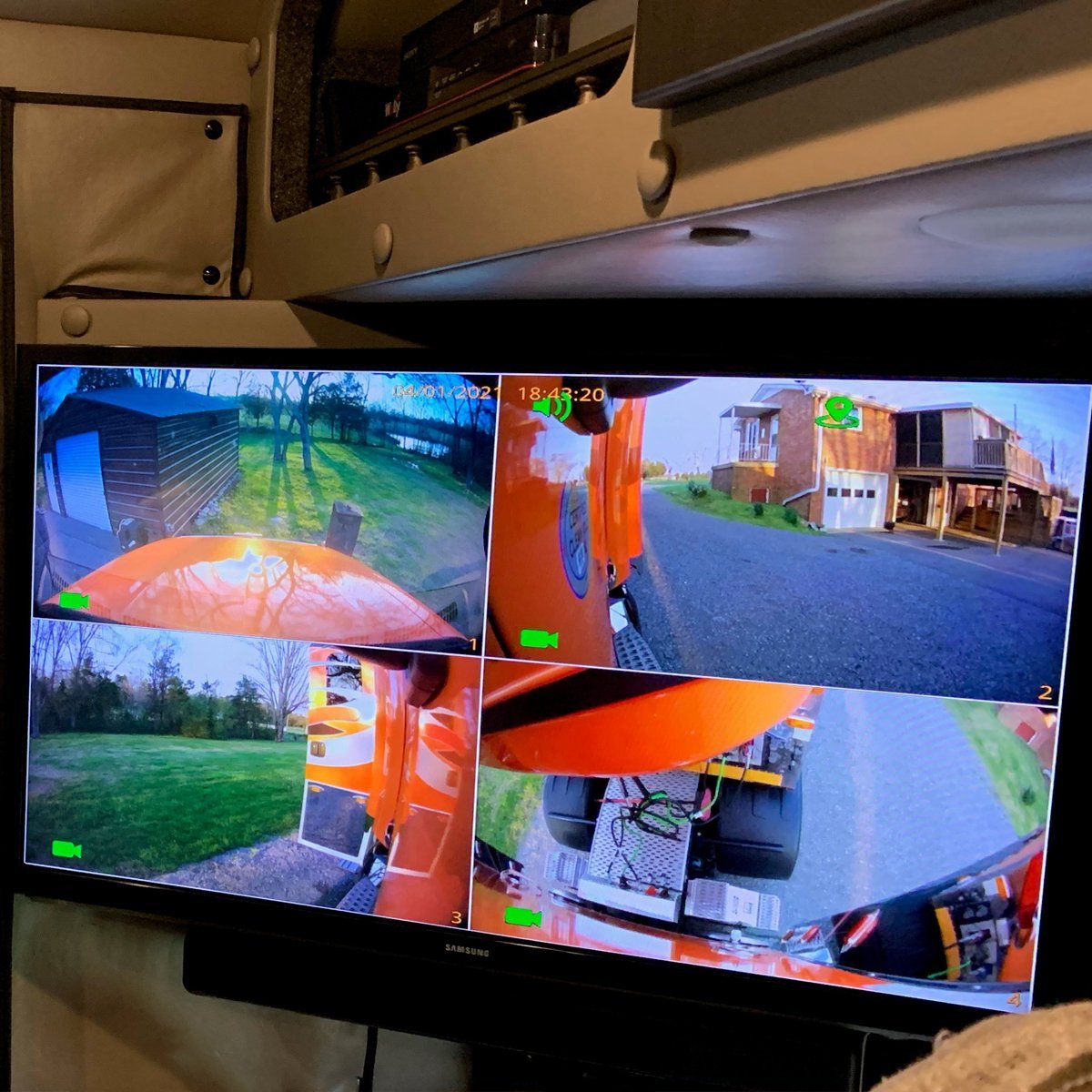

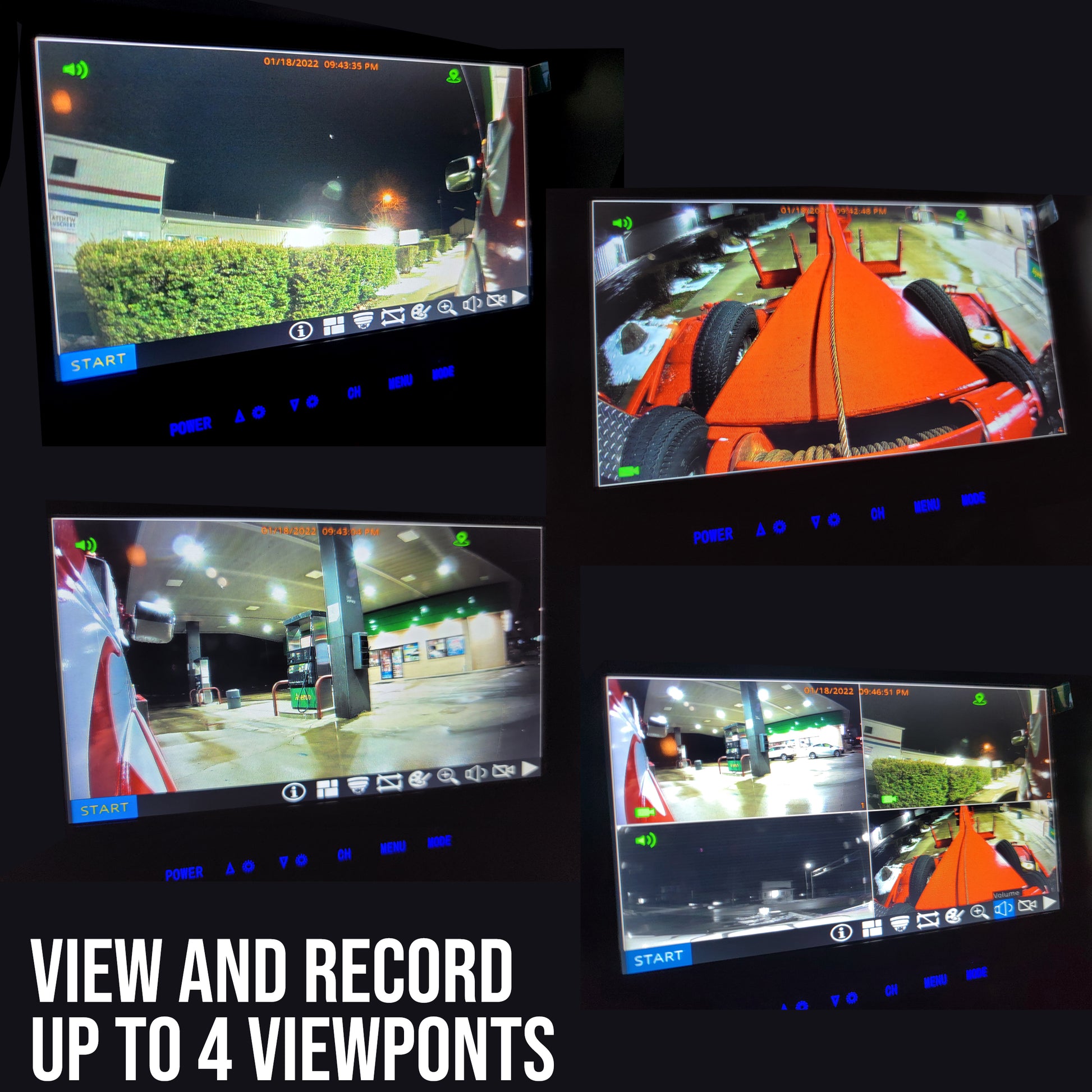

1. If 3 or 4 camera system was purchased, you should set up the LCD to show in quad view mode. This mode will show all 4 camera views at same time. With a 3 camera system, you will have one of the screens displaying a black screen.

1. If purchased, insert SD card/cards, turn system on and FORMAT SD card/cards. Once complete, you can now use this as a DVR to record the videos to the SD card.
