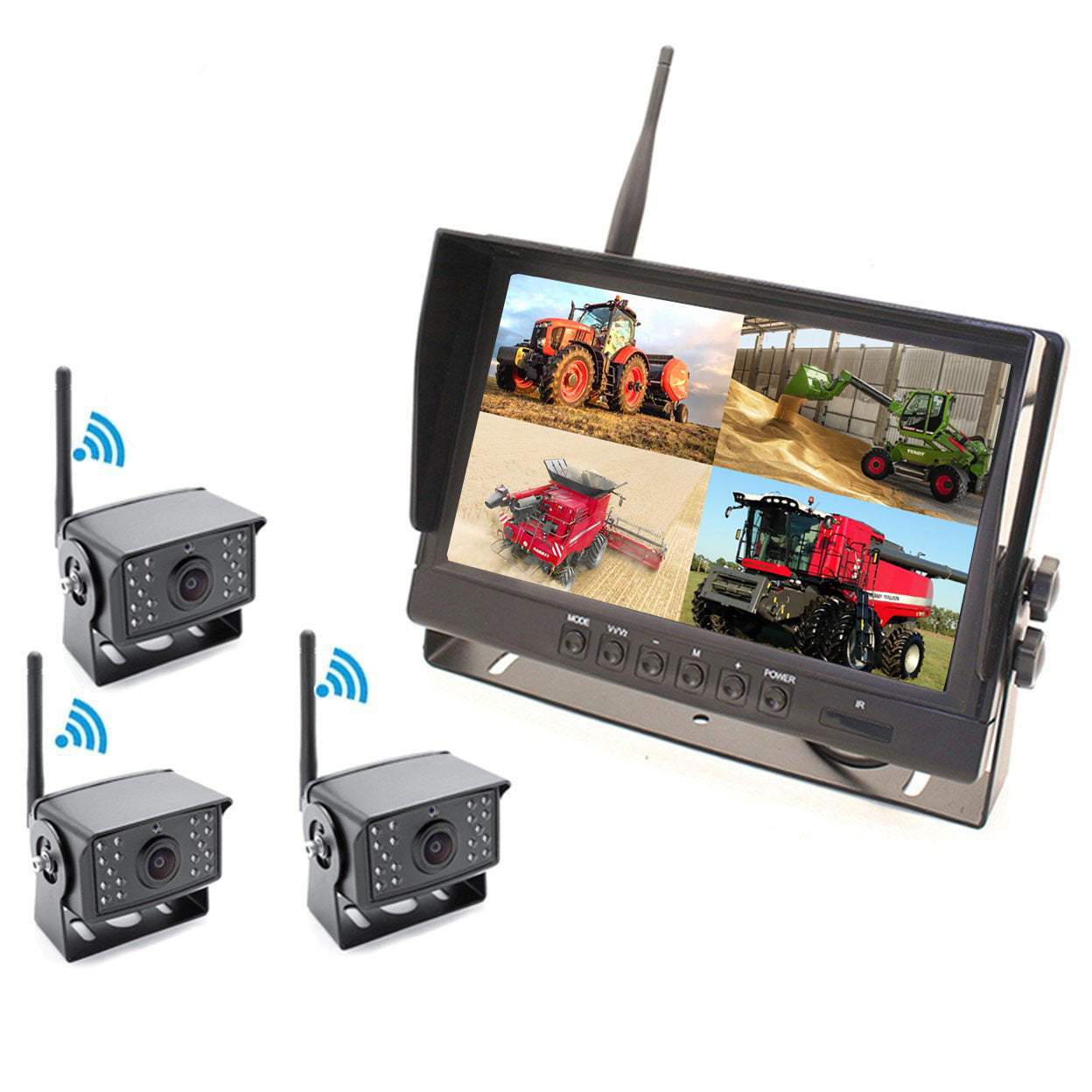

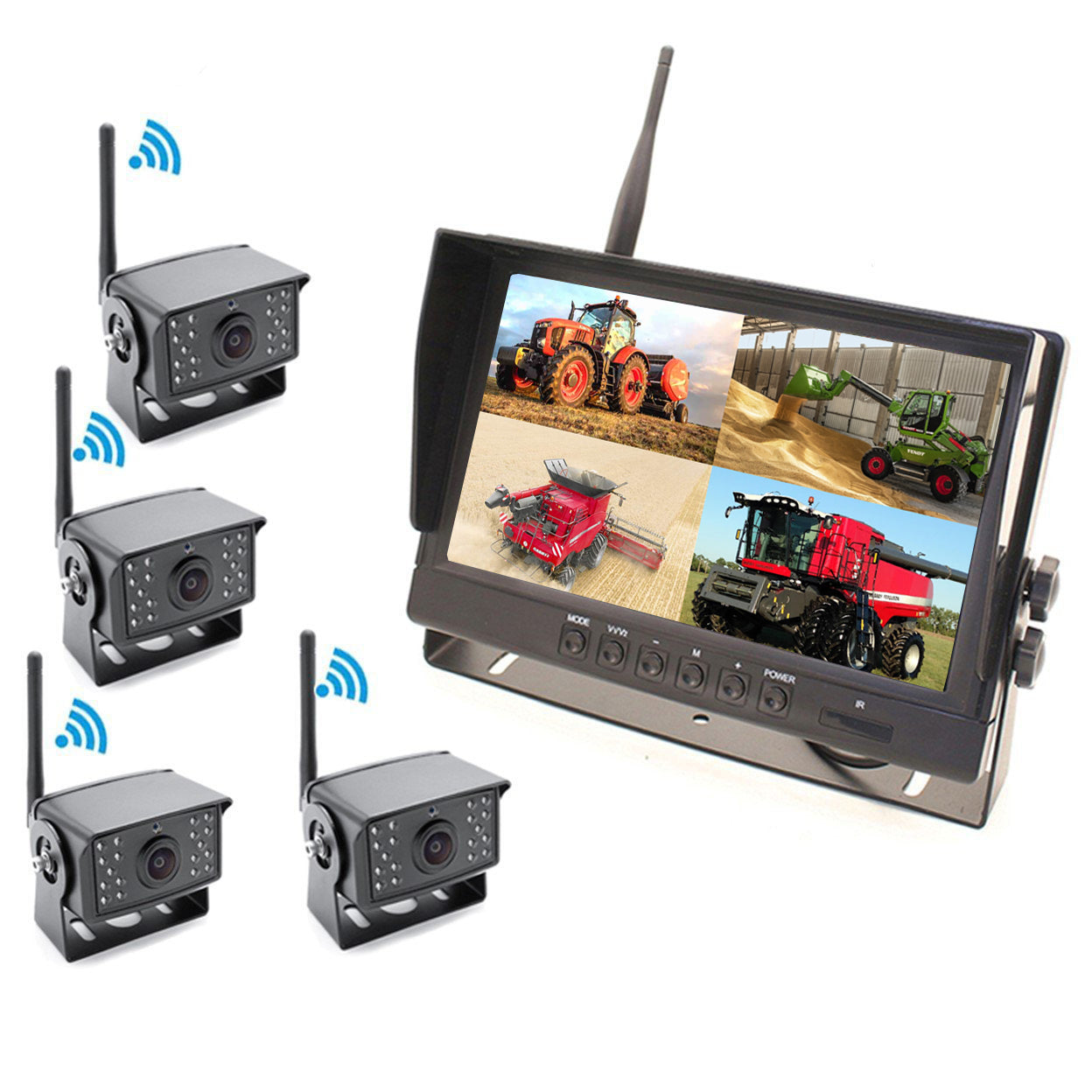

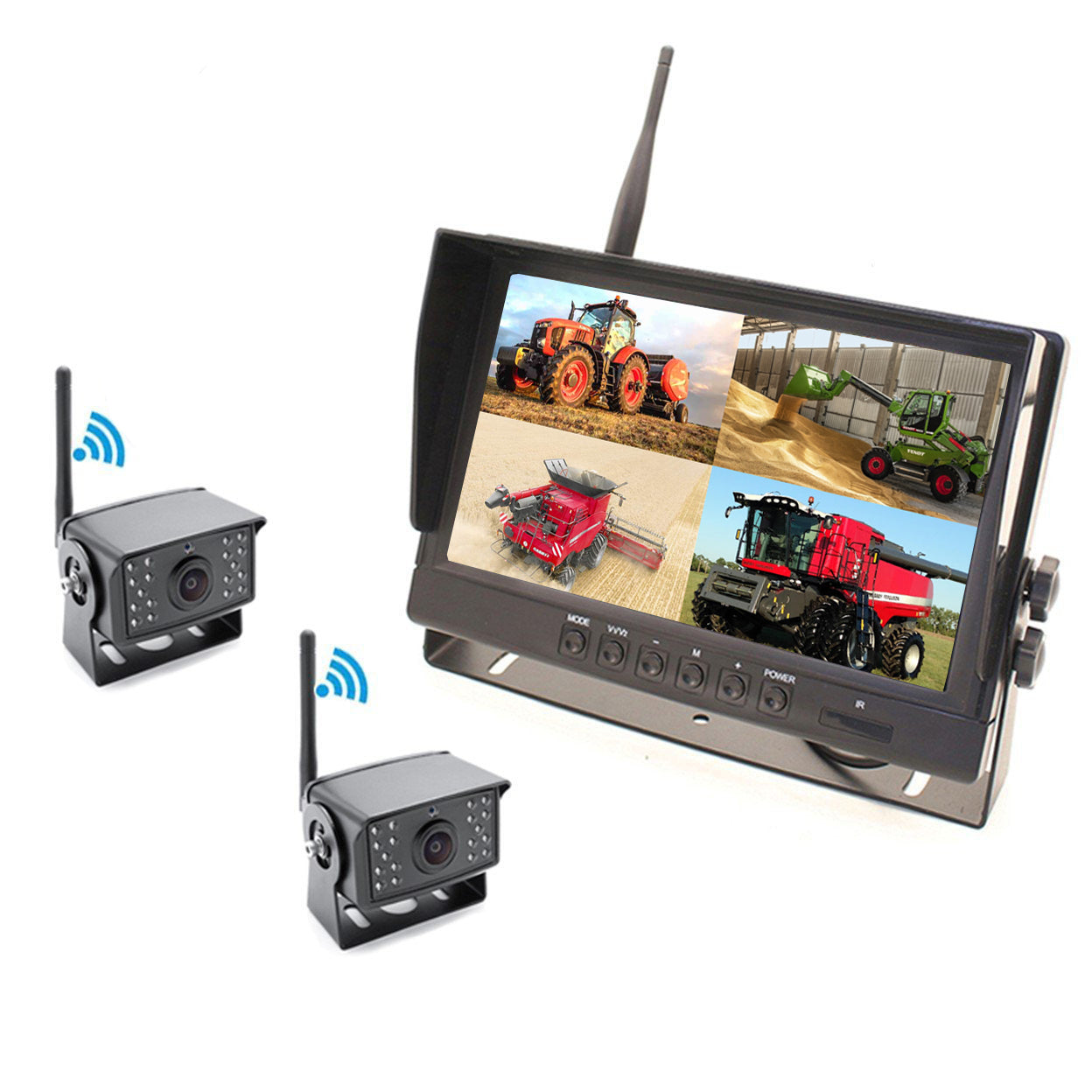

Wireless DVR Camera System With 9" LCD & 2-4 Cameras

960P HD Wireless 2 to 4 Camera DVR System with 9" LCD!

Great for horse trailers, tractor-trailers, and all farming equipment

BENEFITS FOR AGRICULTURE COMPANY:

• No Monthly FEES EVER! Pay for the equipment and you will never pay again!
• Record 2-4 viewpoints from 960P WIRELESS weatherproof heavy-duty night vision cameras

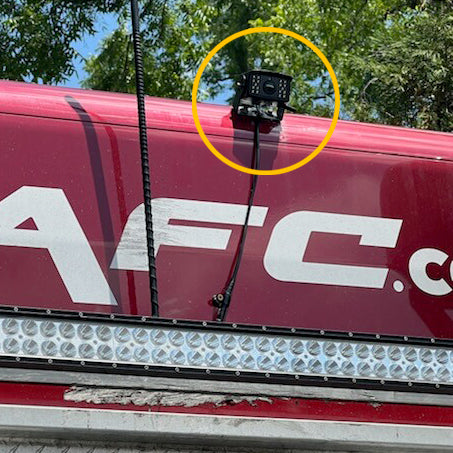

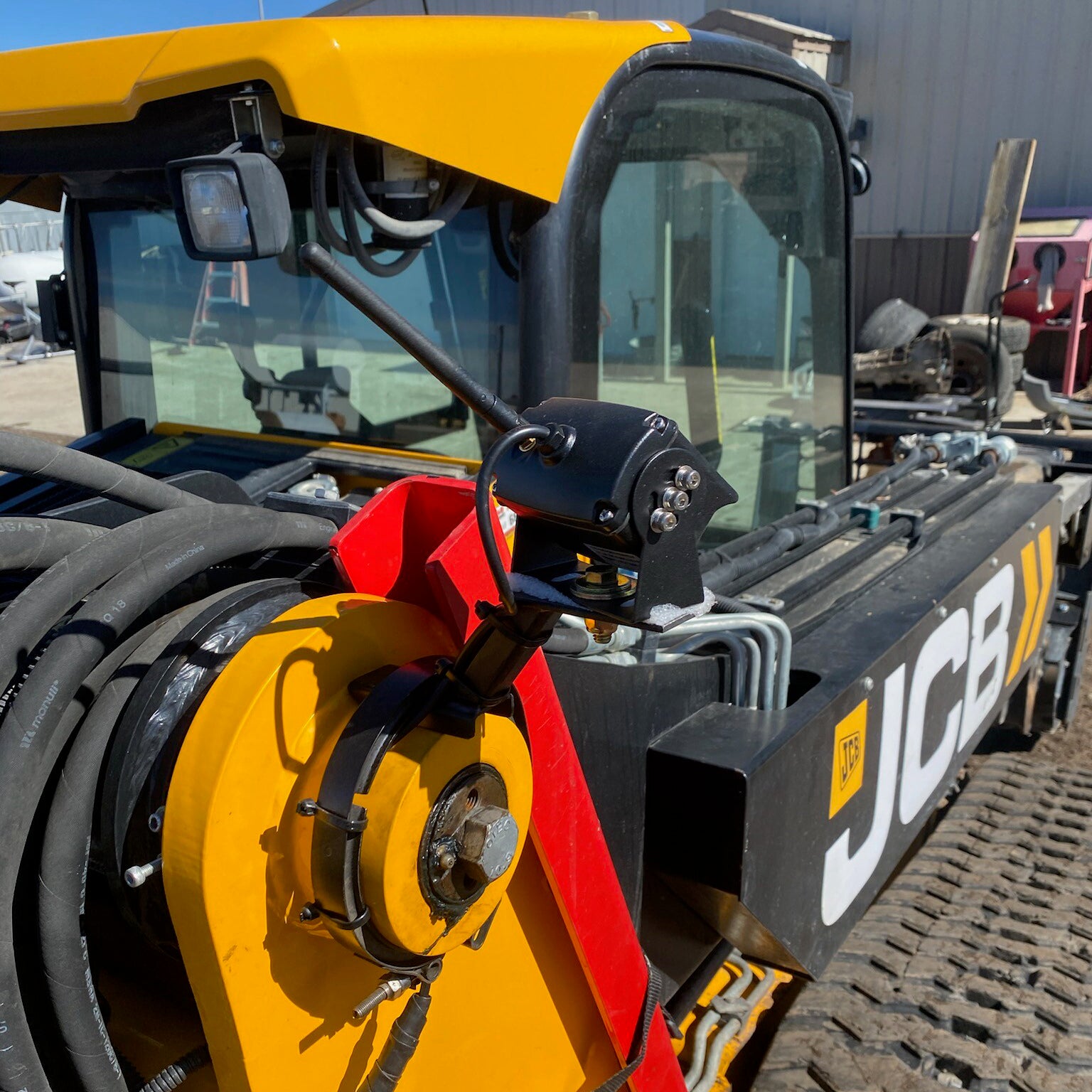

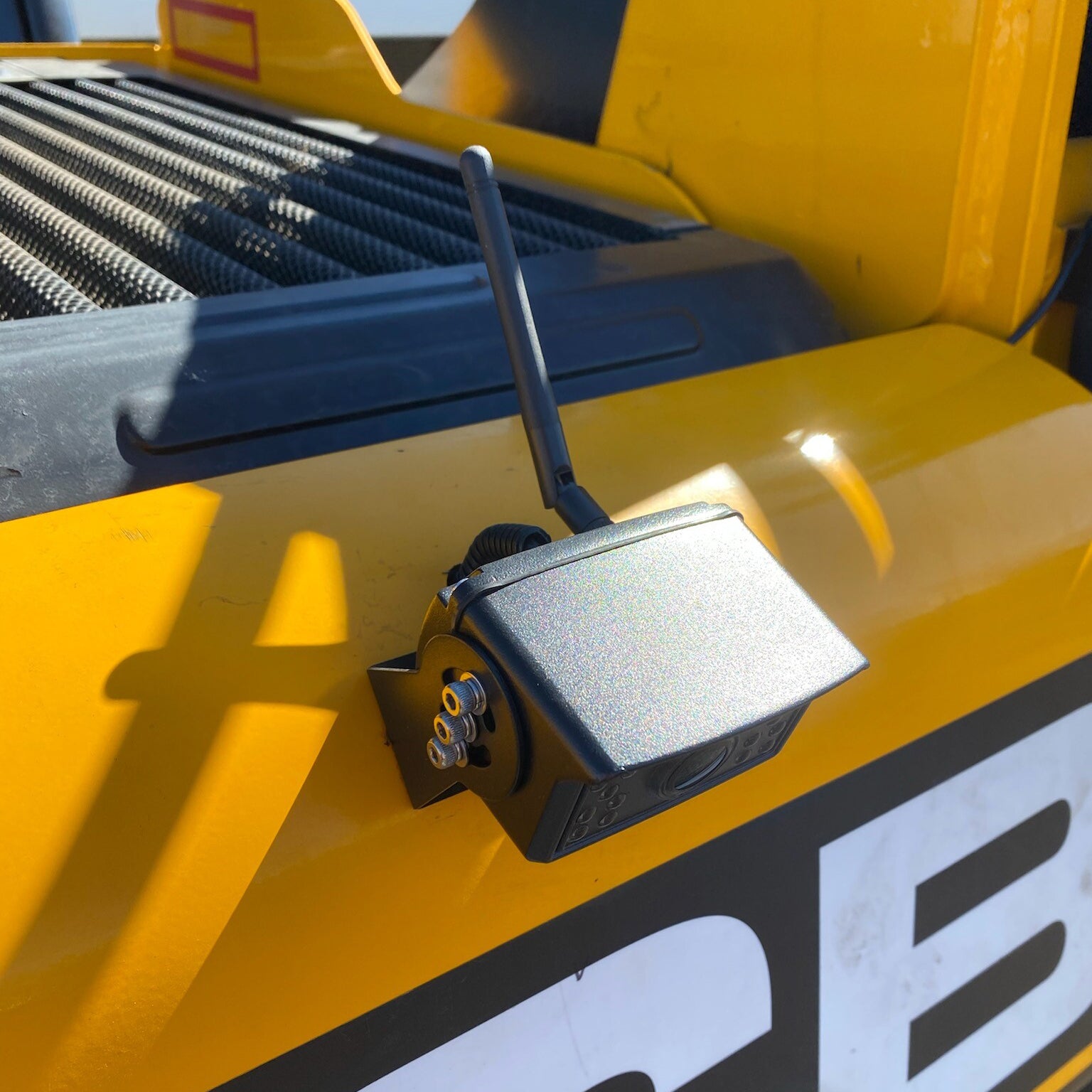

• Wireless range from camera to 9" LCD is 200' or more! Can install on practically any trailer or vehicle or in any industry

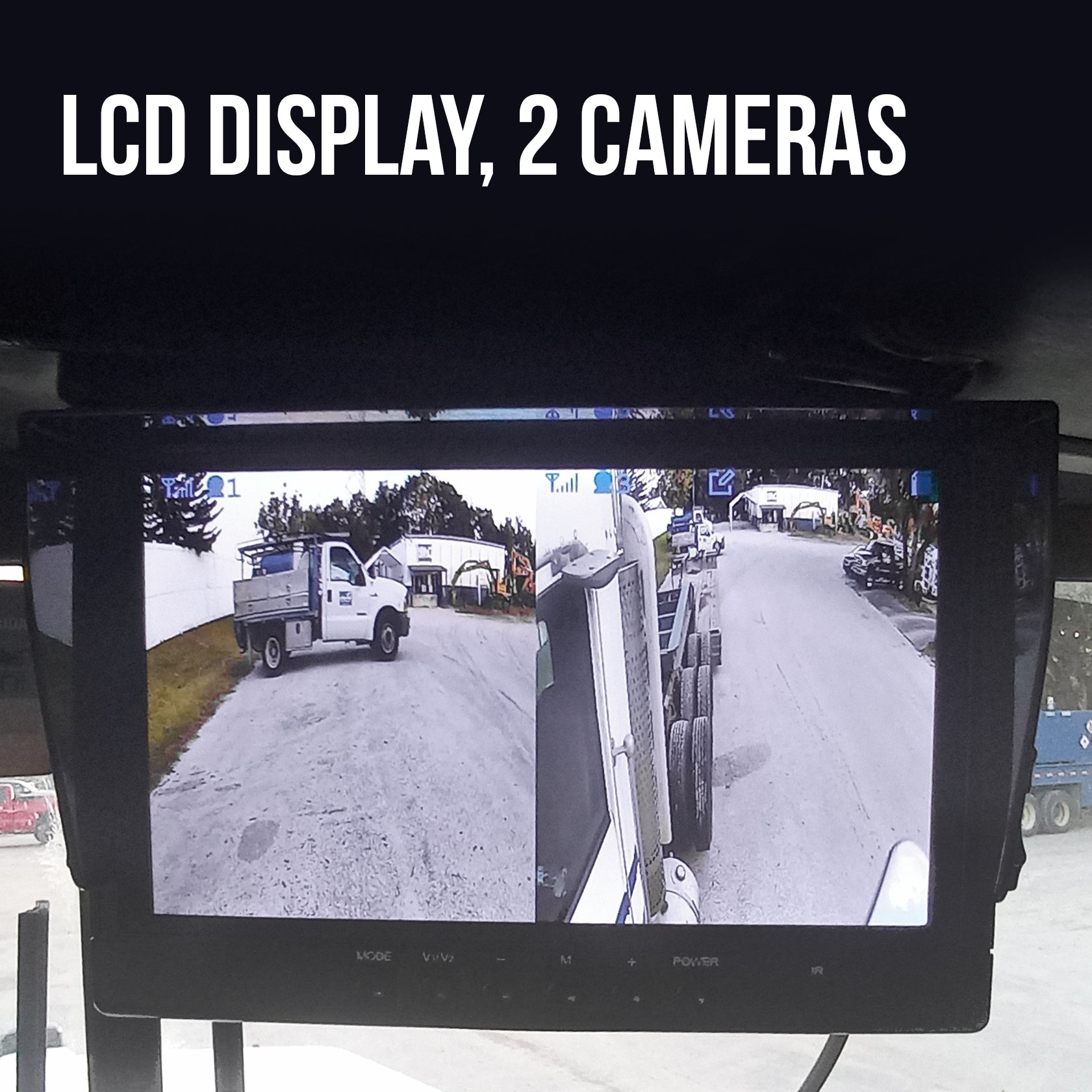

• Includes 9" LCD that can display 1 camera, 2 camera, or 4 cameras and you can switch the viewpoint by touching button on remote or on LCD
• LCD can be turned off but the DVR will still record the 2-3-4 cameras
• 9" LCD offers a super clear and bright screen and will help your drivers avoid accidents when they change lanes and/or park in tight areas
• 9" LCD has built-in DVR, which means that this will record up to 4 viewpoints, which will give you video evidence of what happened in any situation or accident
• DVR can use up to 256GB SD Card (not included), which means that this system can record up to 70-80 hrs before loop recording
• Volume discounts, FREE quotes, 100% money back guarantee and FREE shipping included

FEATURES:

• Premium WIRELESS 2-4 Camera DVR System for Truck Drivers & Fleets-
• Record 2-4 Viewpoints with Wireless Cameras with 200' Plus Wireless Range
• Cameras are 960P High Resolution, Heavy Duty, Commercial Grade with excellent night recording
• All Video is time and date stamped to prove what happened and will give date/time details
• Loop recording, which means DVR will delete old video with new video, once SD Card is full. Can use up to 256GB SD Card

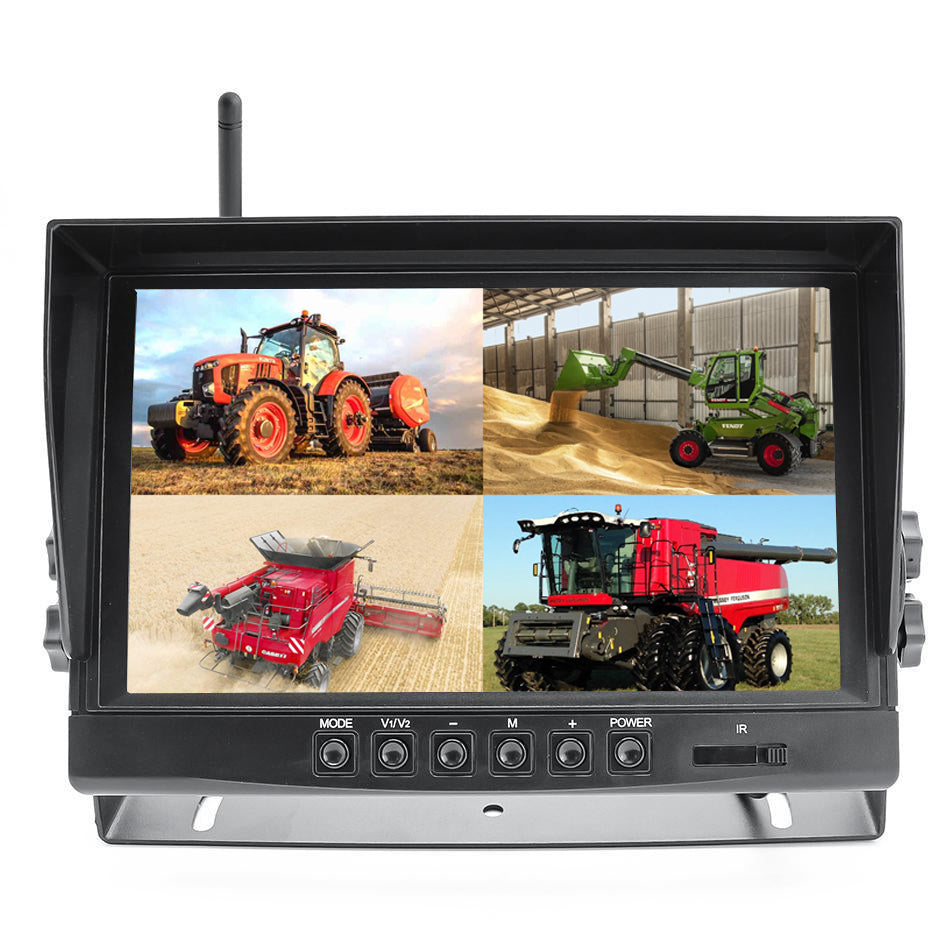

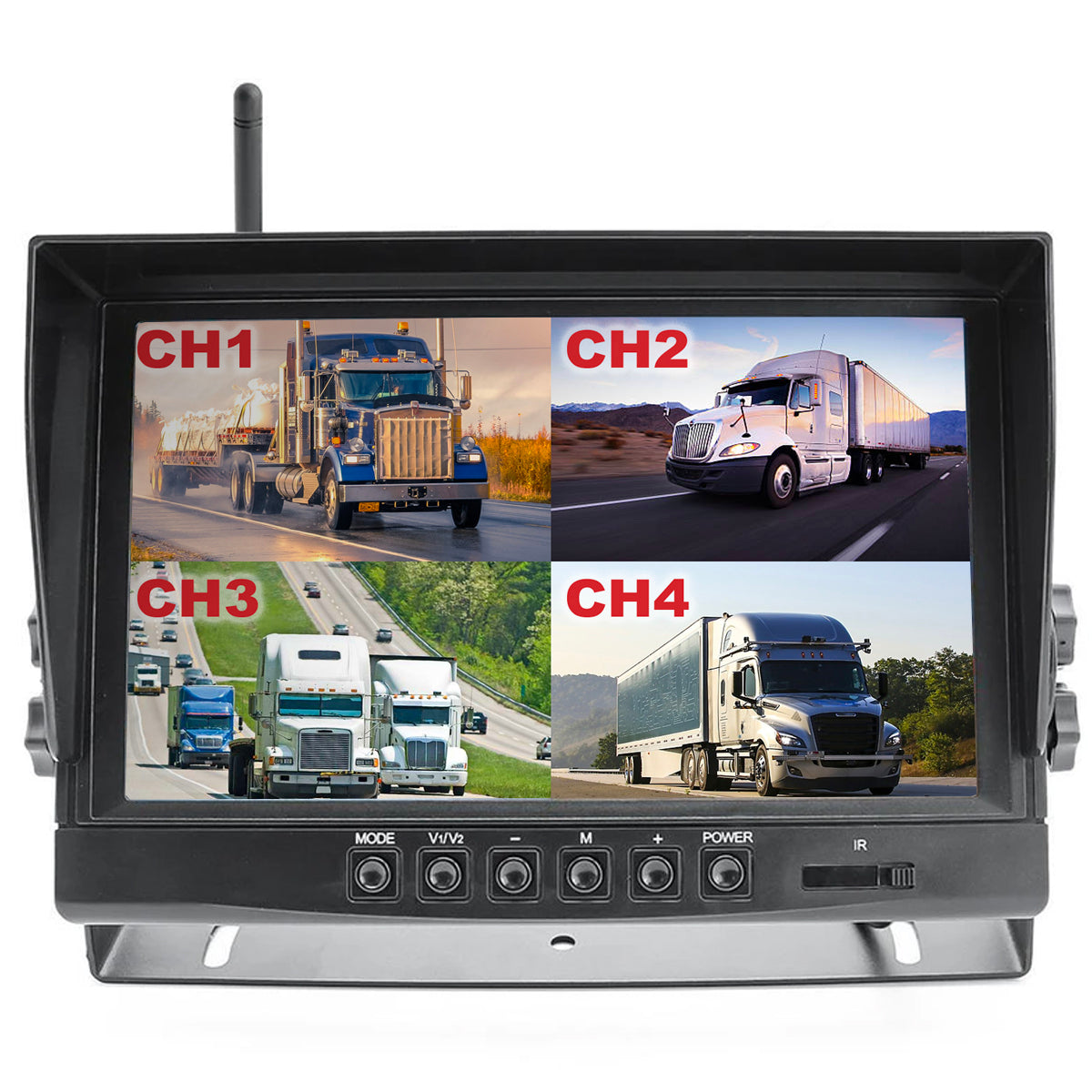

• Wireless 9-inch LCD with Quad View Capable Screen (1-4 Viewpoints at once)
• Reduce Accidents with Blind Spot Monitoring
• DIGITAL Wireless Back-Up Camera System, 0% Interference, 0% static, with 100% crystal clear picture
• Quad view monitor allows single, or multiple views (split display).
• SD card slot allows video to continuously loop record.
• DIGITAL Wireless Back-Up Camera System, no need for complex wire connections for an easy install.

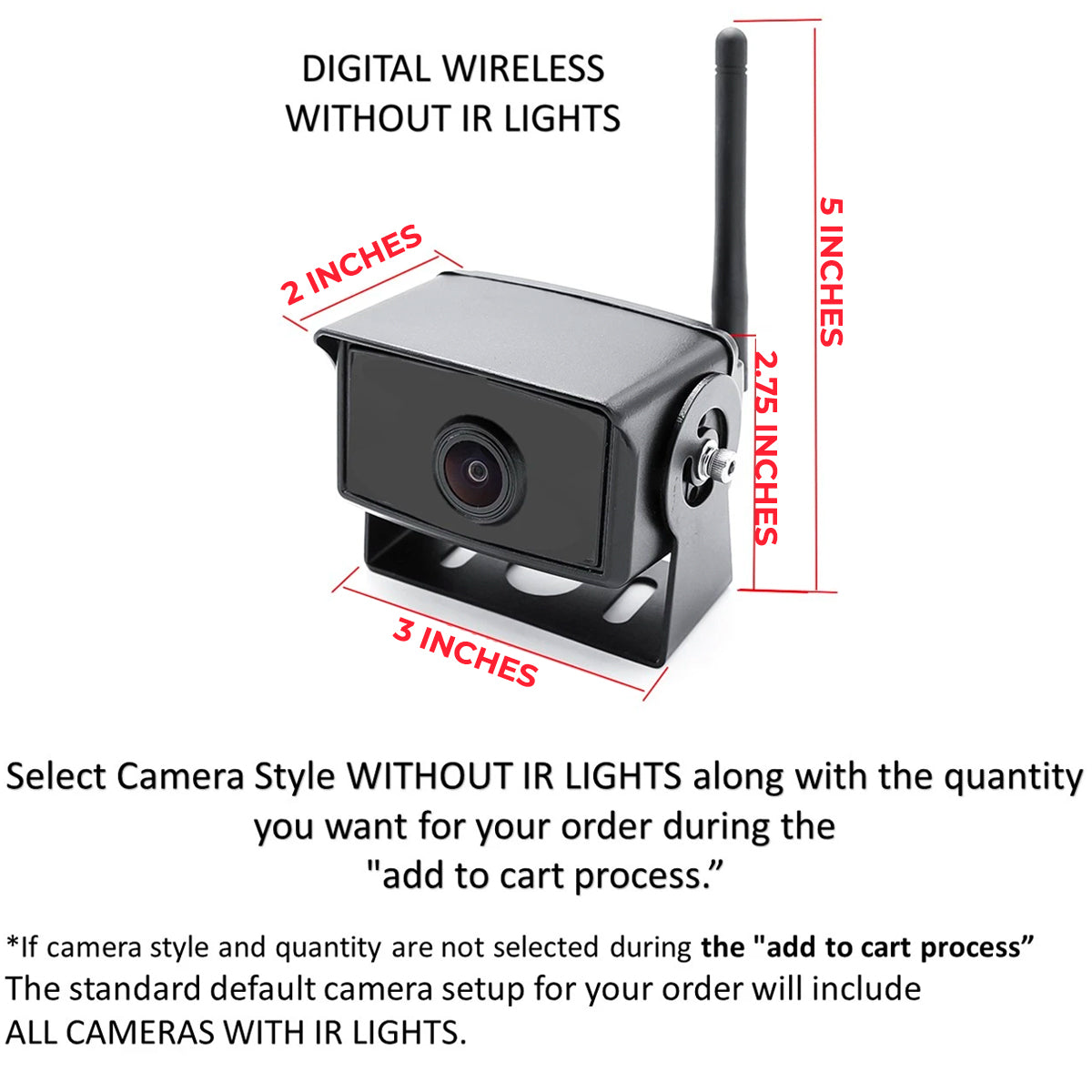

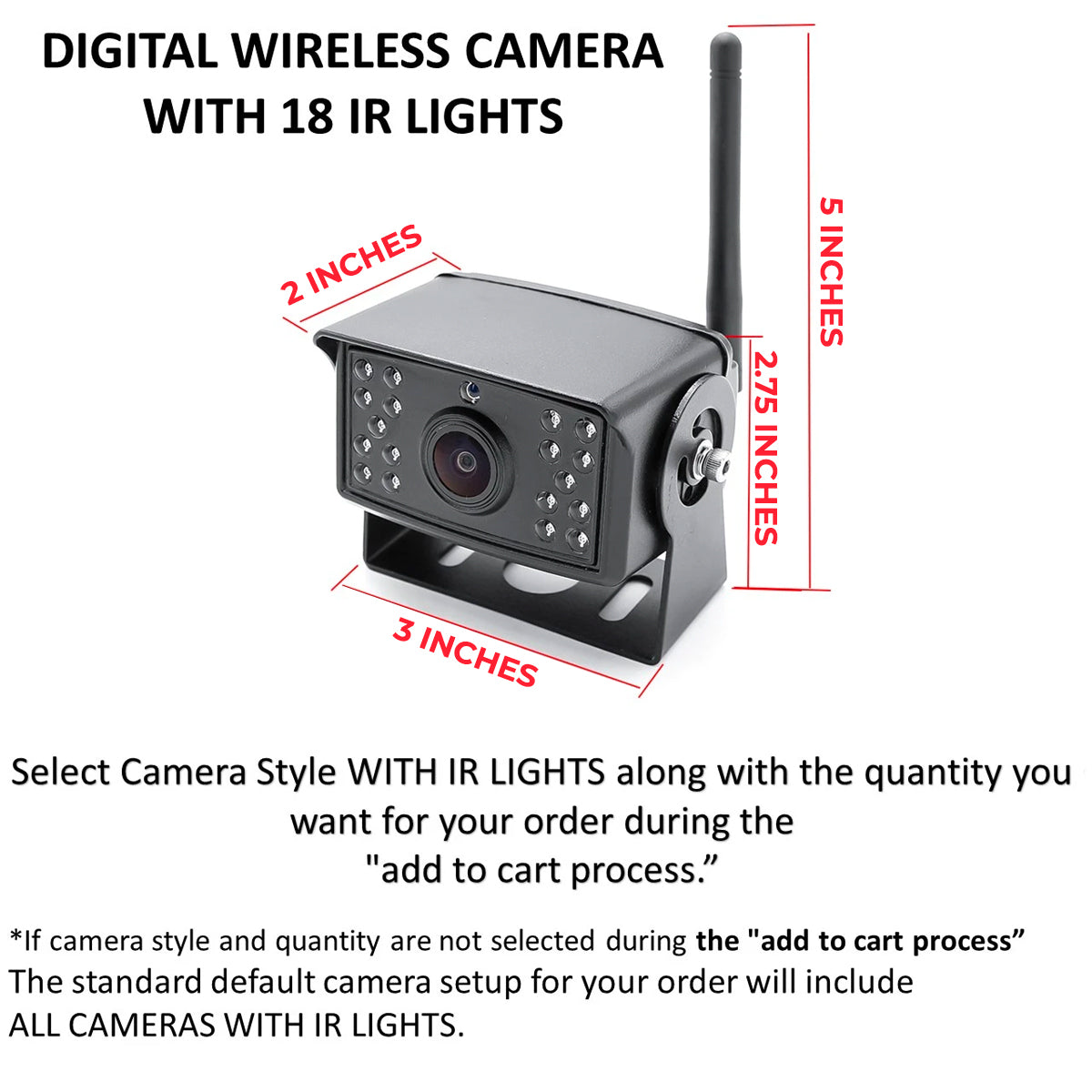

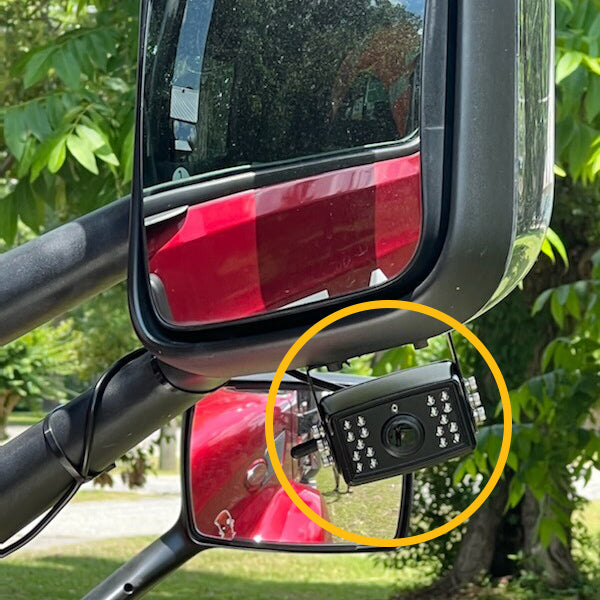

• Built with high-powered IR LED night vision bulbs for the best night viewing. Cameras can also be ordered WITHOUT IR LIGHTS at checkout. No Price difference.
• Mirror image button feature directly on the monitor
• Automatic video setting for bright and dark environments

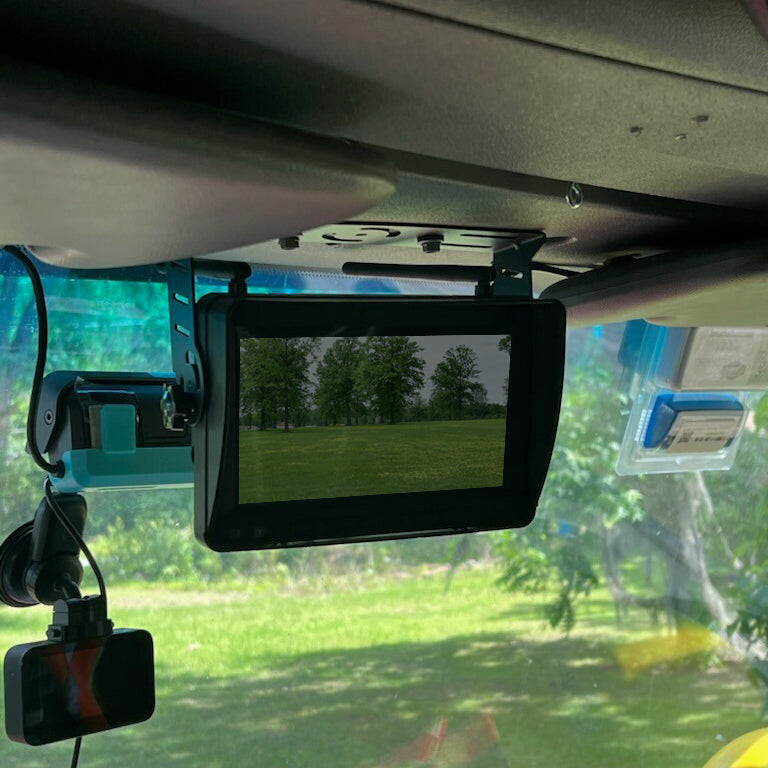

• 9-inch Color LCD Monitor with built-in receiver, can turn off LCD during driving

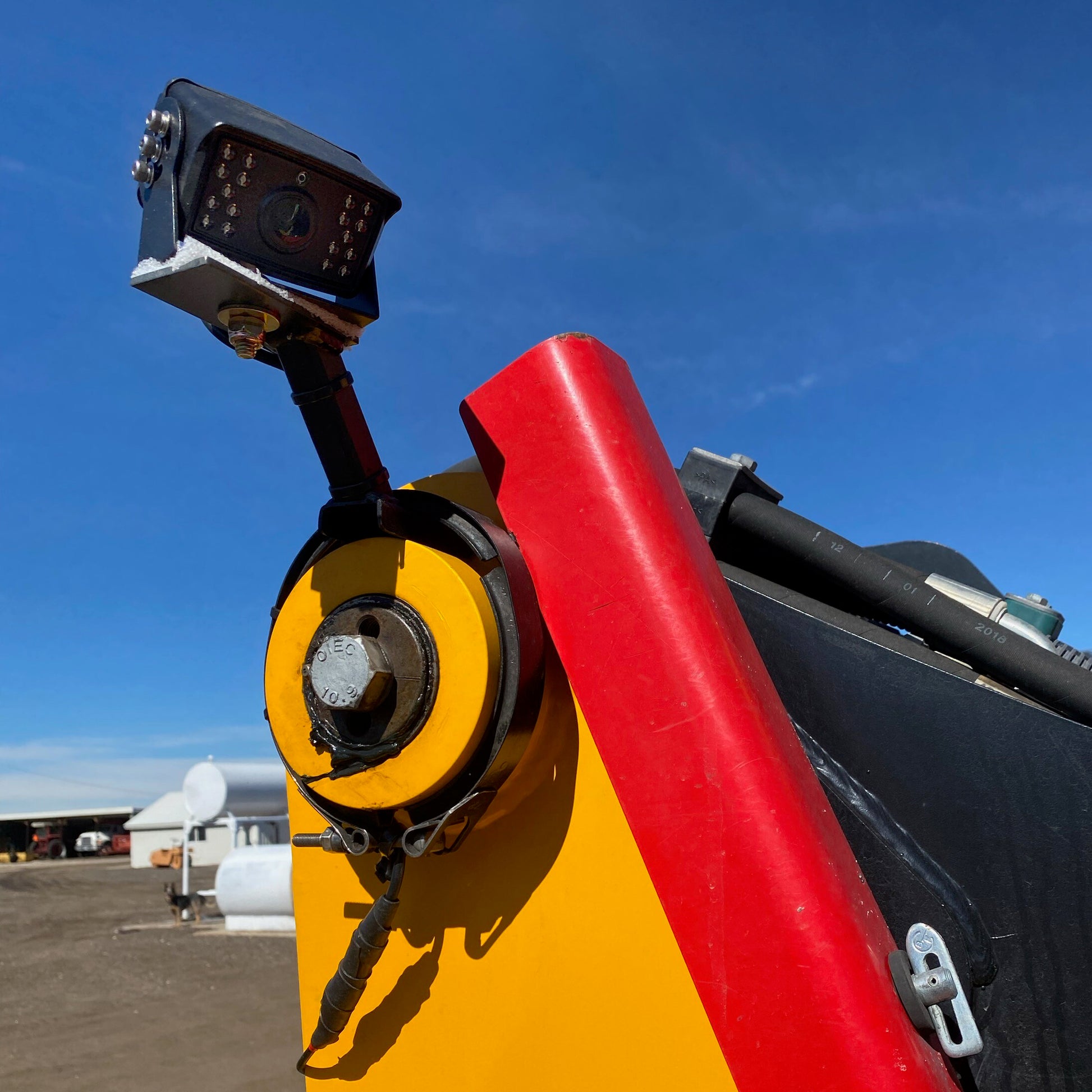

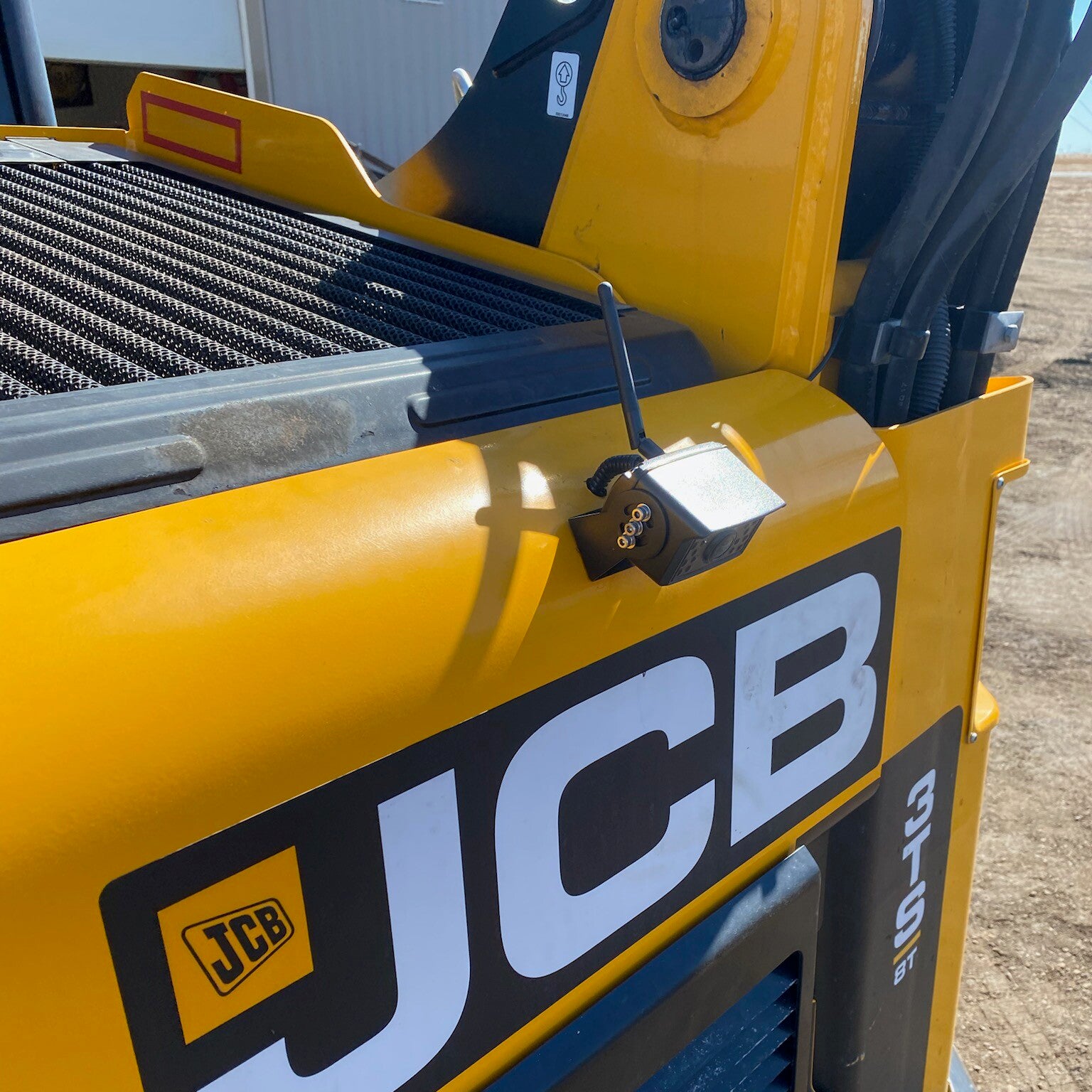

• Waterproof, heavy-duty IR camera provides flexible mount options. Cameras can also be ordered WITHOUT IR LIGHTS at checkout. No Price difference.
• For use with 12V-24V DC electrical systems
• Easy do-it-yourself installation with the elimination of wires from camera to monitor
• Box complete with everything you need to install
• Easy to read English installation manual
• 30 Day Money Back Guarantee & 1 Year Warrant

SPECS:

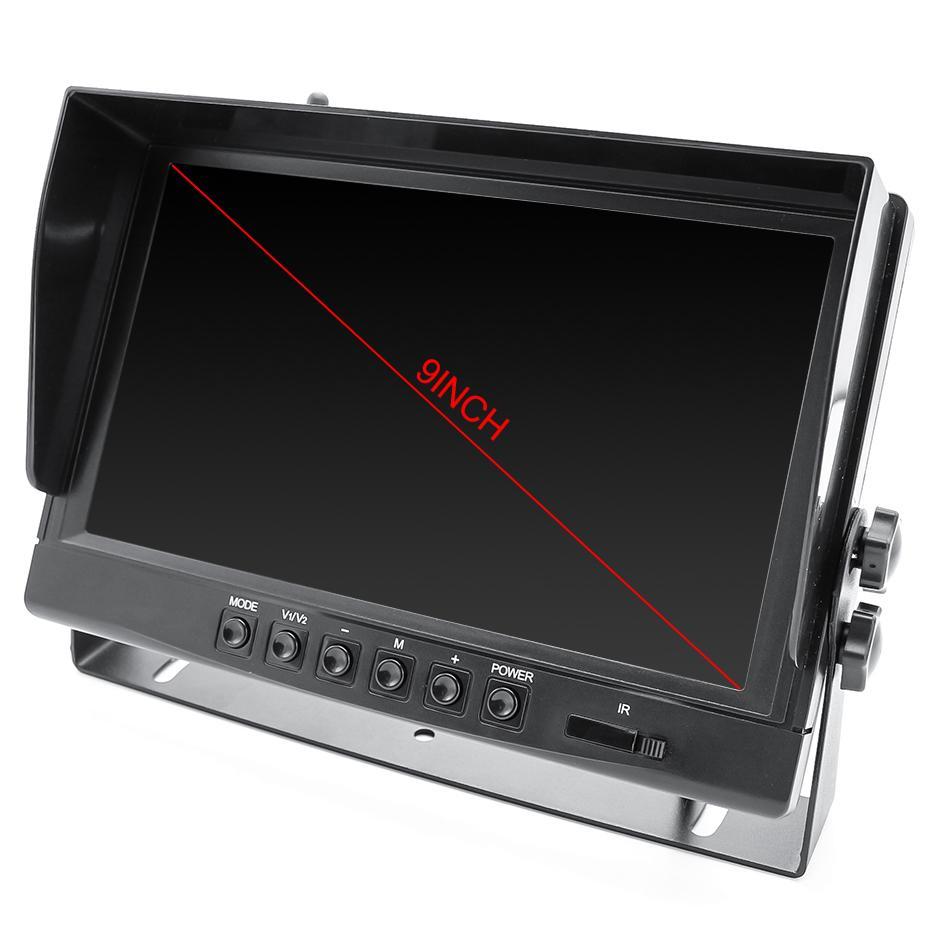

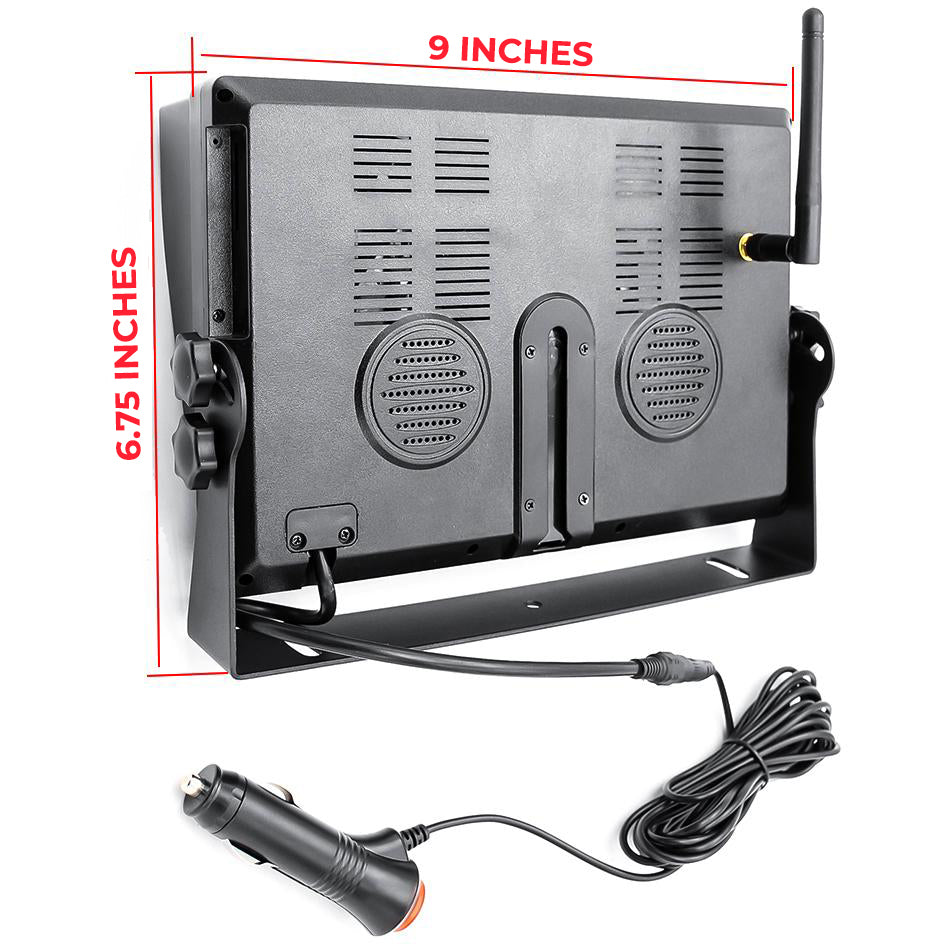

• Monitor Size: 9-inch
• Monitor Specs: 1024x600P
• Contrast: 500:1
• Brightness: 500 cd/m2
• Viewing Angle: 120 Degree Wide Angle
• Aspect ratio: 16:09
• Operating temperature: -20~+60° C, RH 90%
• Storage temperature: -30~+80° C, RH 90%
• Operating frequency: 2400 - 2483.5 MHz
• Transmitting distance: up to 300 ft
• Receiving sensitivity: -78 dBm
• Decompression form: MPEG4
• Emitting frequency: 18dBm
• Transmitting speed: 12 Mbps
• Modulation: 2.4G FSK / GFSK
• TF Card: Max. Up-to 256GB
• Delaying time: 120 ms
• System format: PAL / NTSC
• Energy Consumption: Max. 6W

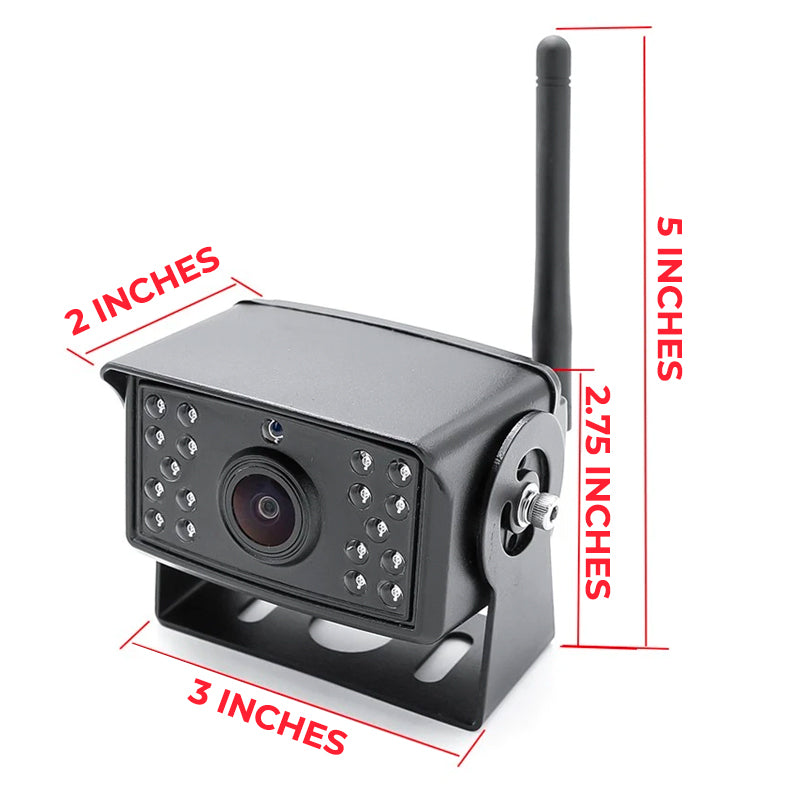

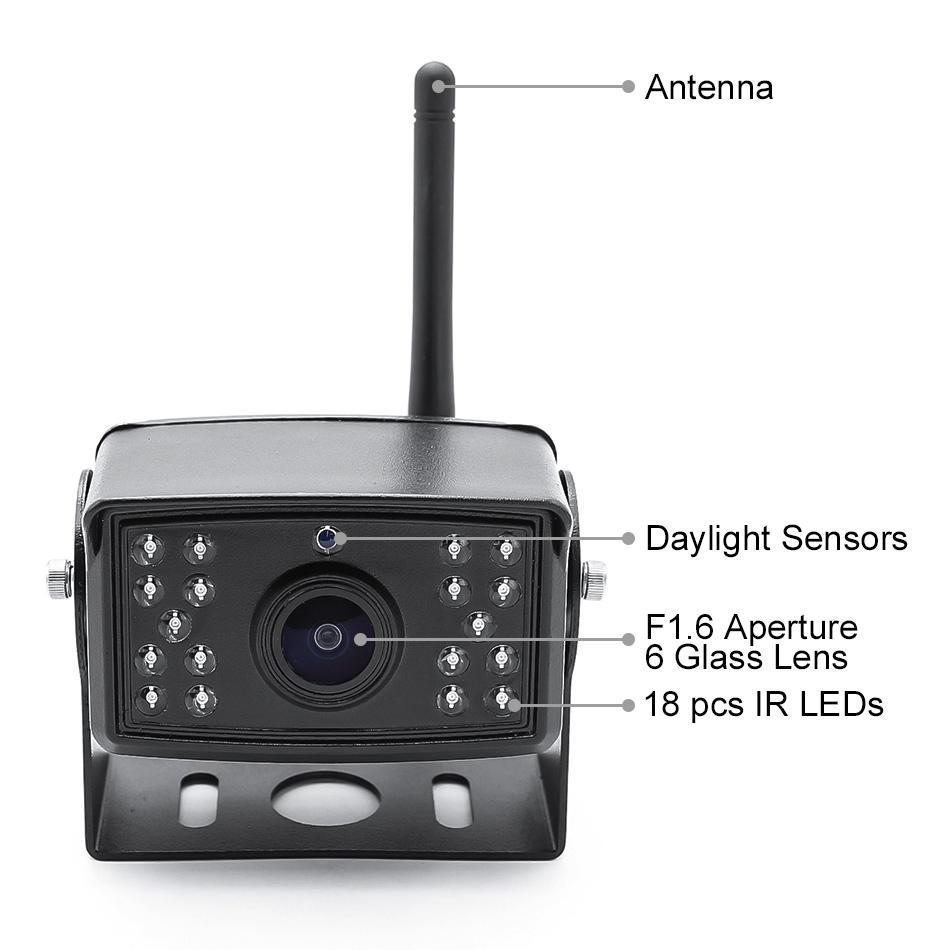

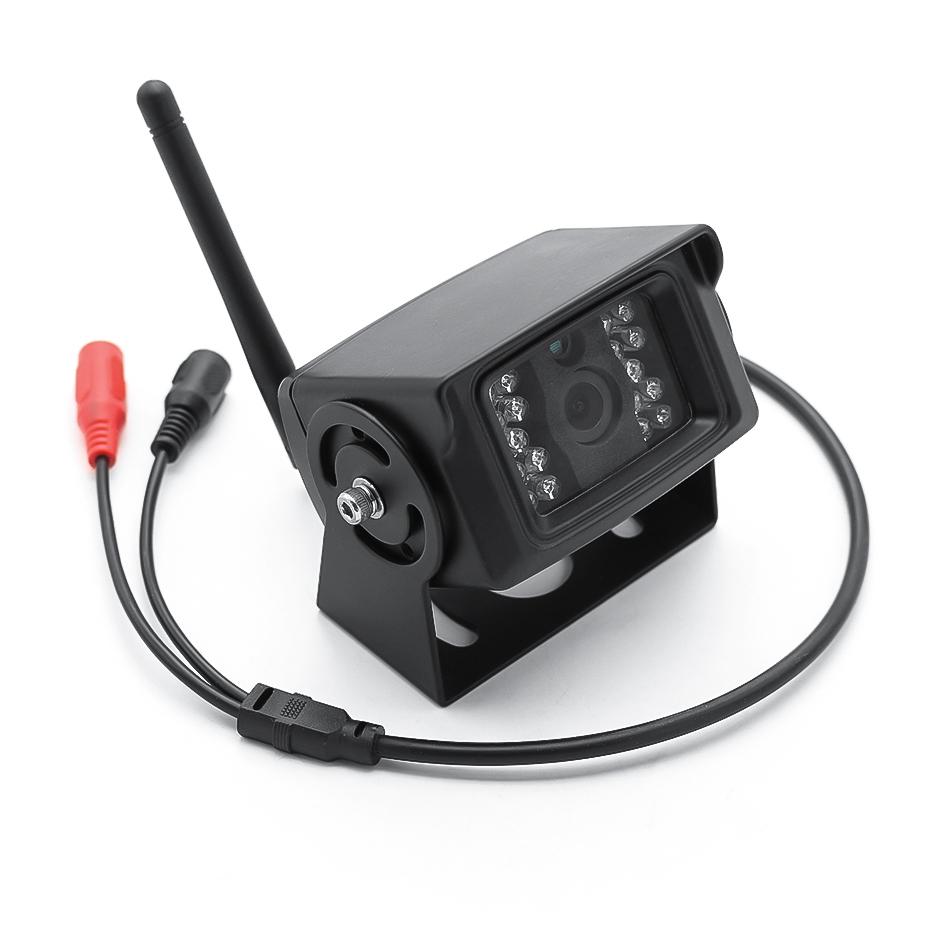

CAMERA WITH IR FEATURES:

• Chips components: AHD HM1246
• Effective pixels: 1280×960P
• Signal format: PAL / NTSC
• Image resolution: 130W pixels
• Video output: AHD Video Signal
• Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
• Lens :16MM F1.6 6 glass Lens.
• Working temperature: -30 °C ~ +60°C

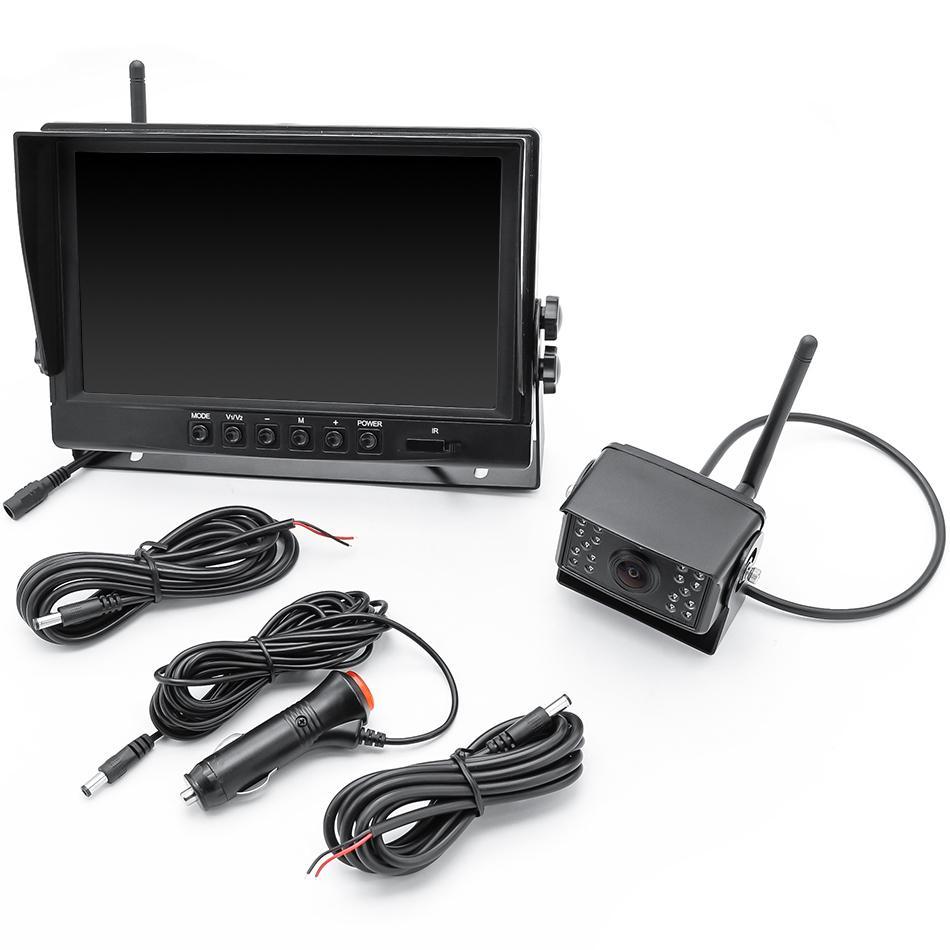

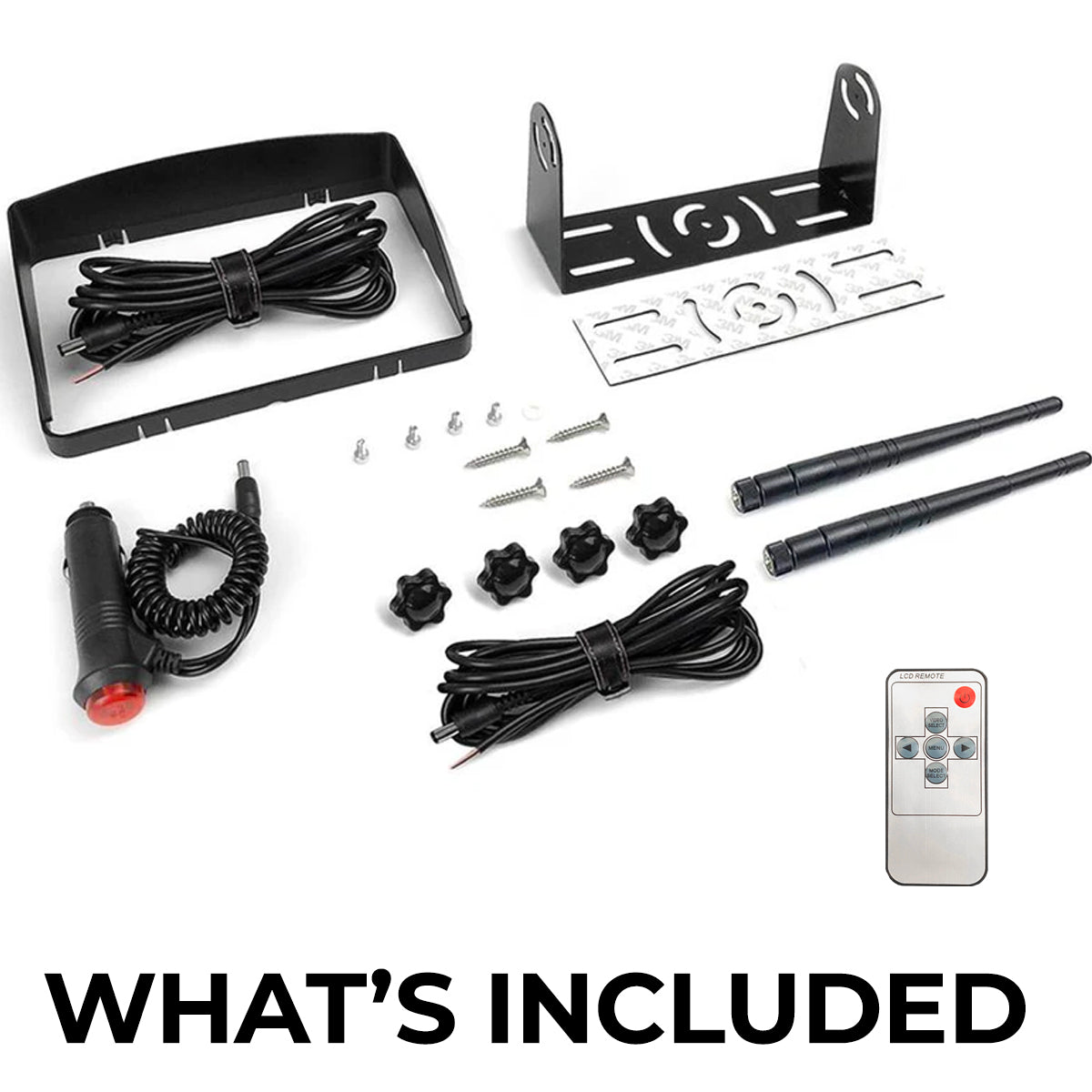

INCLUDED:

• 2, 3 or 4 Digital Wireless Heavy-Duty Night Vision Cameras
• Digi Quad 9-inch LCD Monitor w/ built-in digital receiver

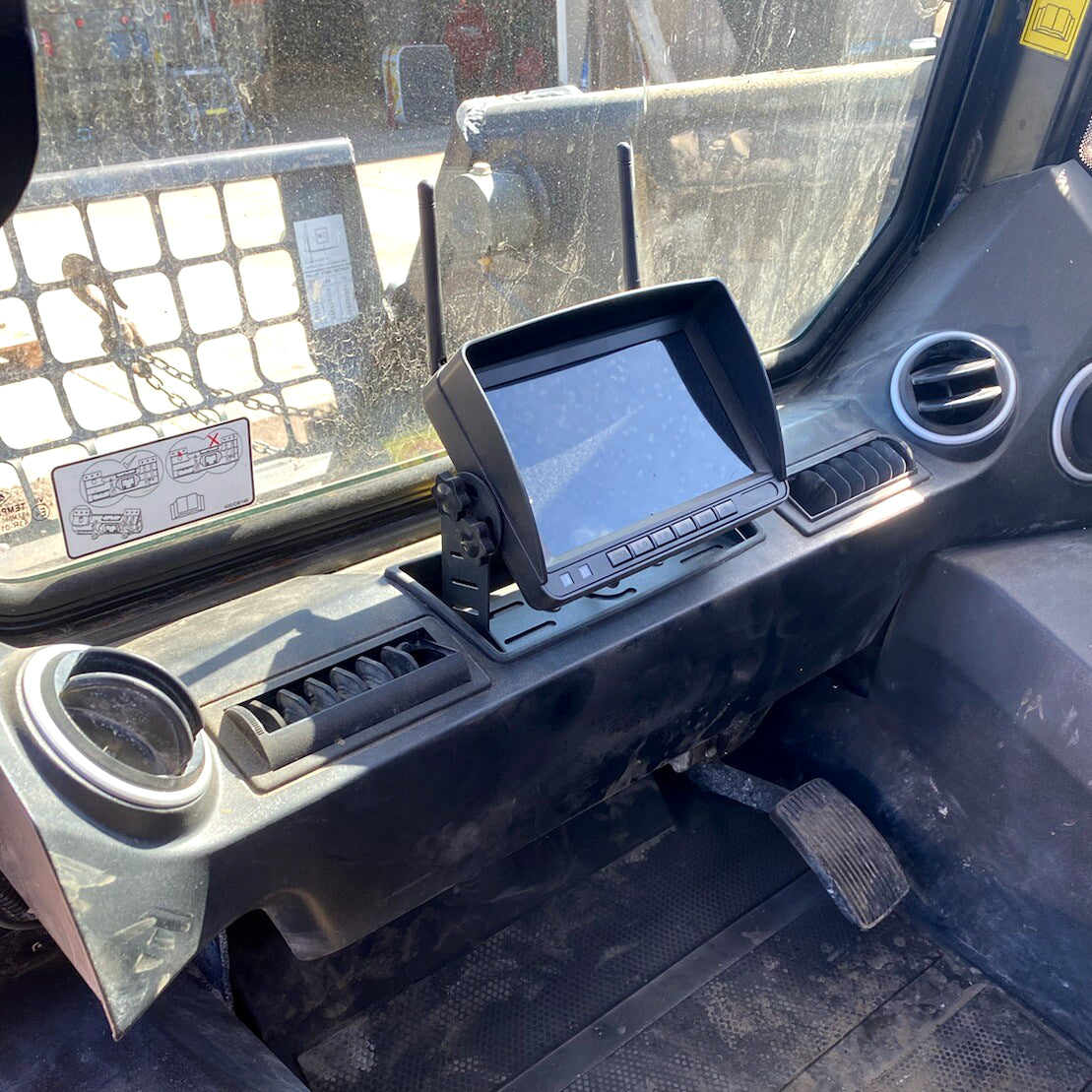

• Dash mounting bracket for LCD
• Sun-shield for LCD Monitor
• 12v Hard Wire Power Cable & Cig Lighter Power Cable for LCD Monitor

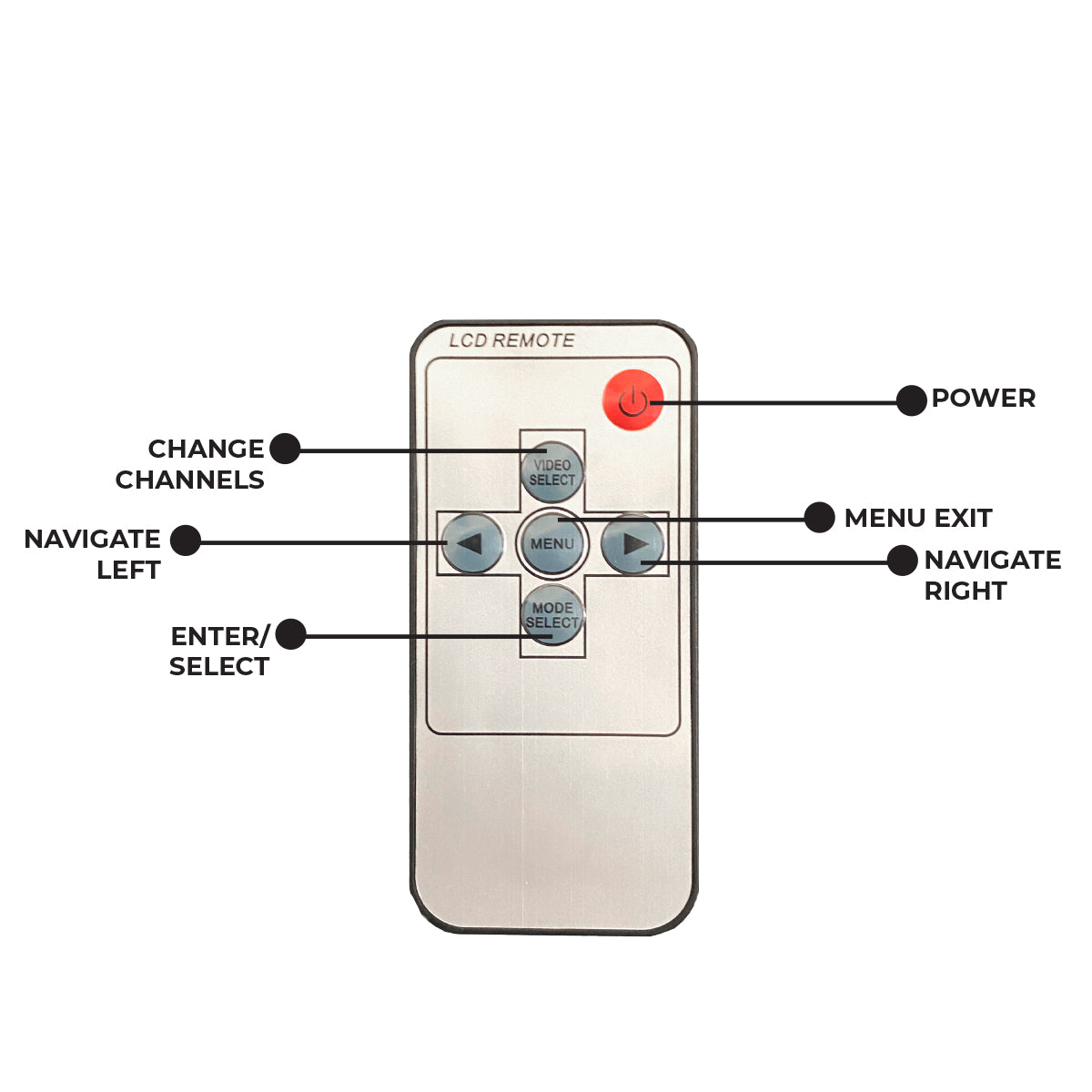

• Remote Control for LCD Monitor

• 1 Small Antennas for LCD Monitor, 1 small antenna for each camera
• Video cable, screws, wire connectors
• User manual

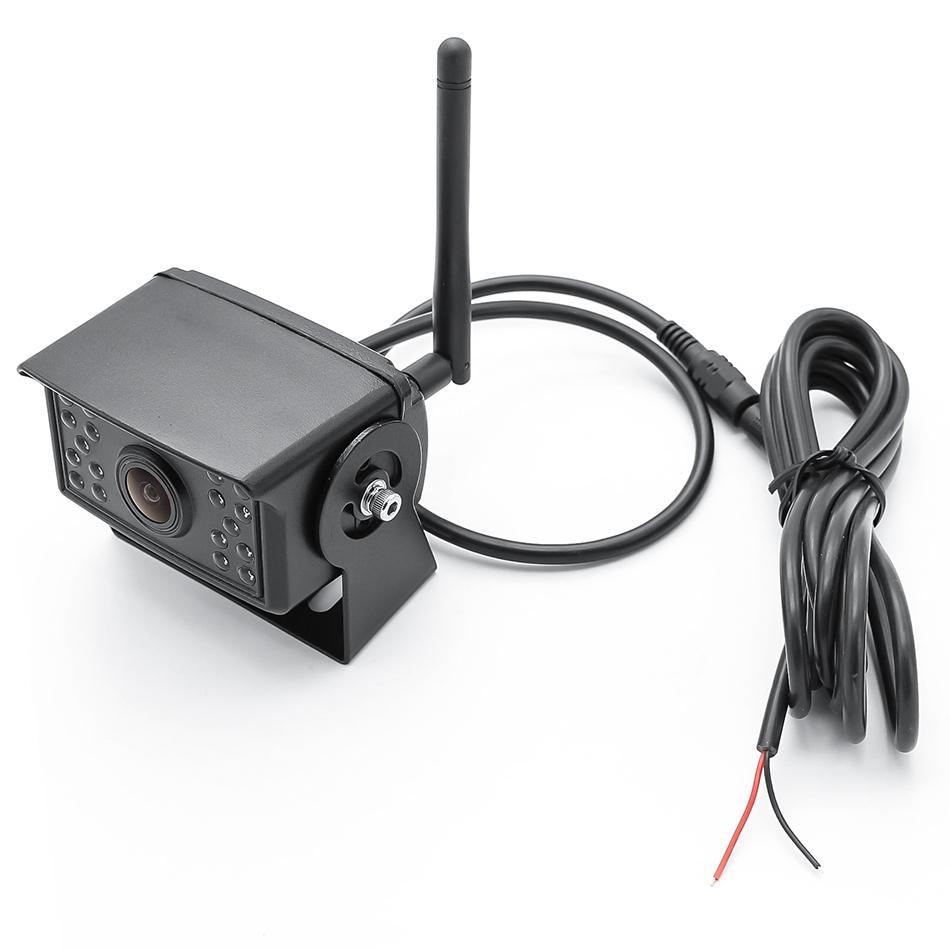

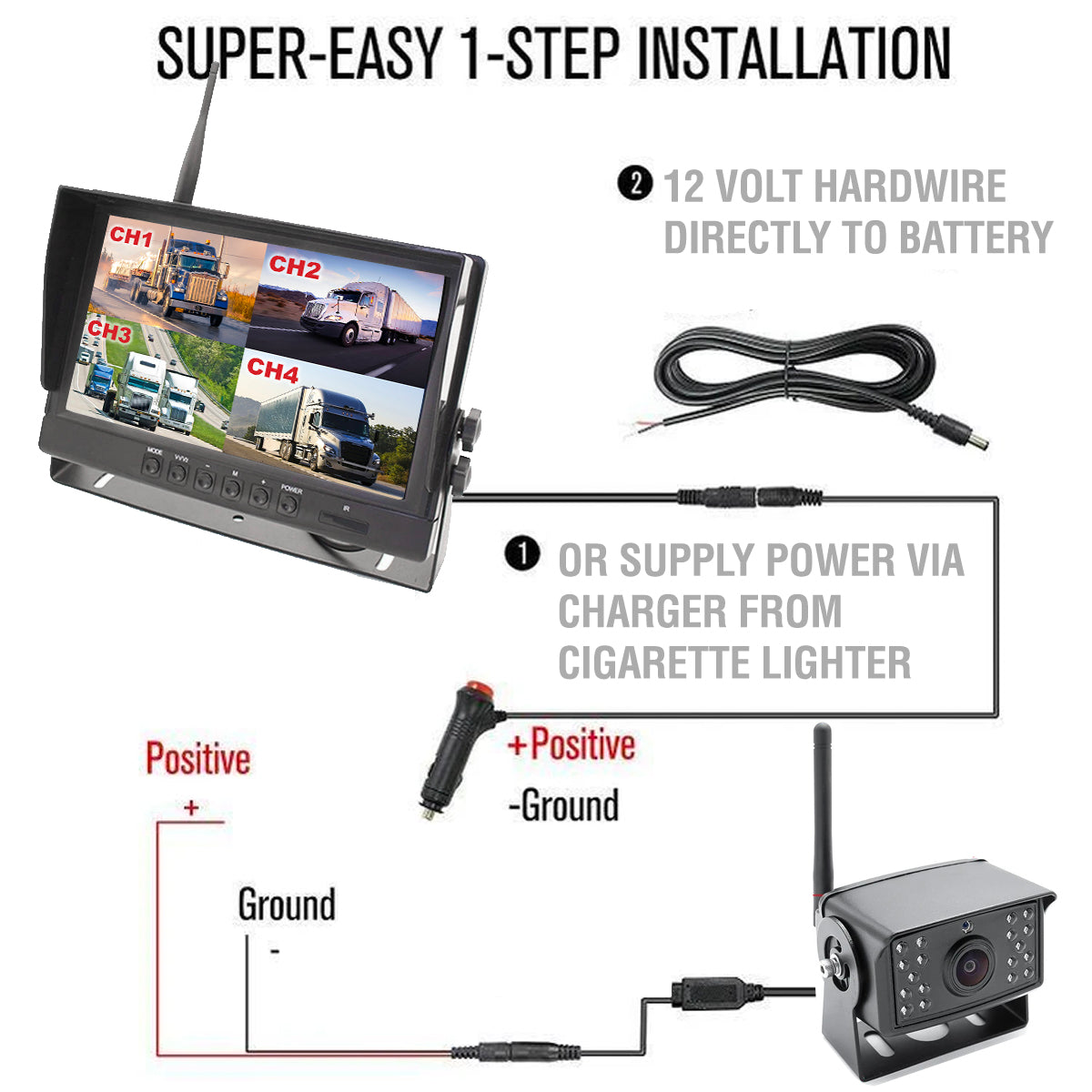

• Each Camera includes a 12 volt power cable. You will need to tap each camera into a 12 volt power source.
• Once the LCD is one and the cameras have power, the LCD will automatically display the cameras.
• You should set up the LCD to show quad view, which means it will show 4 camera views at same time. With only 3 cameras included, you will have one of the screens blank
• DVR Function
• If you purchase and insert a microSD card, you can now use this as a DVR to record the video
• The LCD will record what is shown on the LCD, which means if you show only one camera, only that one video will be recorded. If you show quad screen, then the LCD will record the quad screen video
